GT2 Pulley 48, 72 or 80 tooth for 9mm Belt

$2.40

Specification

GT2-48T-9-5B
GT2-48T-9-6.35B
GT2-48T-9-8B
GT2-72T-8B-9
GT2-80T-8B-9

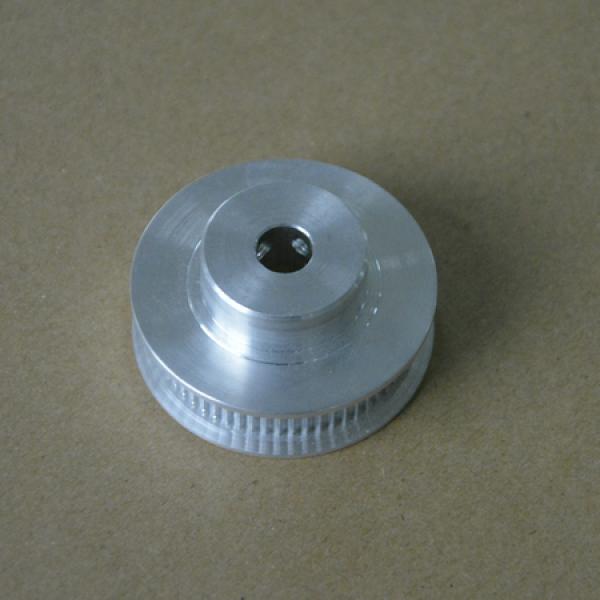

GT2 Pulley 48 Tooth 5mm Bore for 9mm Belt

Material: All Aluminium
Tooth Profie: GT2
Pitch: 2mm

Tooth Number: 48 Teeth
Bore: 5mm or 6.35mm Bore
Gear Width: 9.5mm wide for 9mm open ended or closed-loop gt2 belt.
Idler recommended for this pulley:
http://www.robotdigg.com/product/82/Idler-Pulley-Wheel-for-9mm-Belt
More of 9mm wide gt2 belt pulley
16 Tooth 5mm Bore Pulley
20 Tooth 5mm Bore Pulley
24 Tooth 5mm Bore Pulley
48 Tooth 5mm Bore Pulley
New arrival: quality 72 and 80 tooth 2mm pitch 2GT pulley for 9mm wide belt
72 tooth 2gt pulley
80 tooth 2gt pulley
9mm wide open ended gt2 belt
