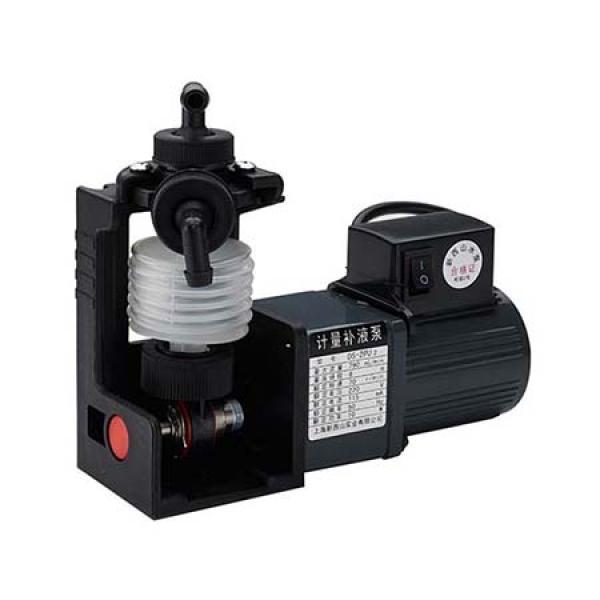

Chemical Bellows Metering Dosing Pump

$38.00

Specification

DS-2EU2
DS-2FU2
DS-2PU2

Bellows Metering Pump

DZ/DS/DZR Bellows metering pumps operate on a positive displacement principle. These metering dosing pumps are designed to displace both corrosive and non-corrosive fluids. Accurate to ± 0.5% from stroke to stroke, when pump is set 50% to 100% of full stroke. Available with either EPDM or FKM elastomers, the self-priming and corrosion resistant features help provide the reliable, continuous duty throughout a variety of chemical dosing applications.
These Bellows Metering Pumps have a compact design saves space, allowing manufacturers to reduce the overall size, weight and cost of their finished products. Small dimensions also permit them to fit into extremely tight areas.
A high-efficiency motor drives an adjustable cam which operated the bellows. This simple mechanism provides virtually silent, accurate operation with no maintenance required.
Bellows Metering Pump

Bellows Metering Pump Features
No leakage: There is no mechanical sealing position, no leakage exists.
Precision of outlet: +/- 1.5% high precision can be achieved at the condition of clean water.
Self-suction: Suction range is 1 meter at the condition of normal atmosphere, temperature and clean water.
Allowed to dry rotation: For working chamber bag consists of bellows, dry rotation is allowed.
Long service life: The chamber is made from polypropylene that is anti-winding and special prescription; it can withstand countless reciprocating motion.
Anti-corrosion: Pump body is made from polypropylene; valve adopts special EPDM, FPM, resisting various acid, alkali and etc. corrosive liquids.

Application
1)Automatic development of colour film microfilm cinefilm and etc;
2)It is uesd in beverage vending machine;
3)Sticking liquid and mediation;
4)Quantitative replenishment of food additive;
5)The etching and cleaning of electronic basic plate printing Circuit;
6)The neutralization of acid and alkali for water treatment the utilization of condensating separation agent;
7)Quantitative supply of electroplate liquid;
8)Widely used in quantitative priming of additive bleaching liquid and medicaments.
Bellows Metering Pump Wiring
