DG series multi-channel peristaltic pump head

DG series multi-channel peristaltic pump head

multi-channel peristaltic pump peristaltic pump

DG-1A-6R

DG-1B-10R

DG-2A-6R

DG-2B-10R

DG-4A-6R

DG-4B-10R

DG-6A-6R

DG-6B-10R

DG-8A-6R

DG-8B-10R

DG-12A-6R

DG-12B-10R

Size:: 1 channel
Color:: 6 rollers
Weight:: 0.100Kgs

Size:: 1 channel
Color:: 10 rollers
Weight:: 0.150Kgs

Size:: 2 channels
Color:: 6 rollers
Weight:: 0.200Kgs

Size:: 2 channels
Color:: 10 rollers
Weight:: 0.300Kgs

Size:: 4 channels
Color:: 6 rollers
Weight:: 0.300Kgs

Size:: 4 channels
Color:: 10 rollers
Weight:: 0.450Kgs

Size:: 6 channels
Color:: 6 rollers
Weight:: 0.400Kgs

Size:: 6 channels
Color:: 10 rollers
Weight:: 0.600Kgs

Size:: 8 channels
Color:: 6 rollers
Weight:: 0.500Kgs

Size:: 8 channels
Color:: 10 rollers
Weight:: 0.750Kgs

Size:: 12 channels
Color:: 6 rollers
Weight:: 0.600Kgs

Size:: 12 channels
Color:: 10 rollers
Weight:: 0.900Kgs

$85.00

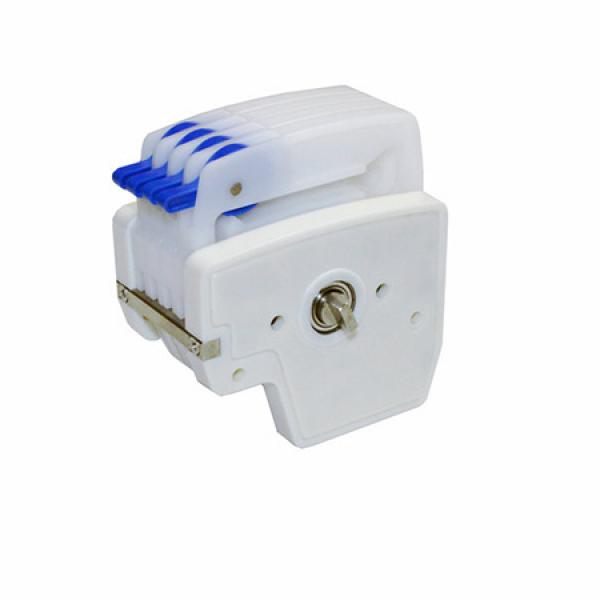

Multi-channel peristaltic pump head

Flow range: 0.0002-48mL/min
For slight flow rate, high accuracy, multi-channel transportation
Suitable for different thickness tube
Multiple pump heads available
Multi-channel Peristaltic Pump
Separate card design, easy to change the tube
DG-1A、DG-2A……DG-12A series pump head: 6roller, lager flow rate
DG-1B、DG-2B……DG-12B series: 10 roller, lower flow rate, high accuracy, low impulse
0.6×1，1×1, 2×1，3×1 tubes are made in Chin, others are import
[Tube installation]
Press twist plate （DG-1A、DG-1B, twist plate included) or card bevel and take out the card
Put the tube in the groove and fix the tube on STOP 2 ends, STOP distance 72mm, keep same flow rate of each channel
Put the card into pump body, installation finished
