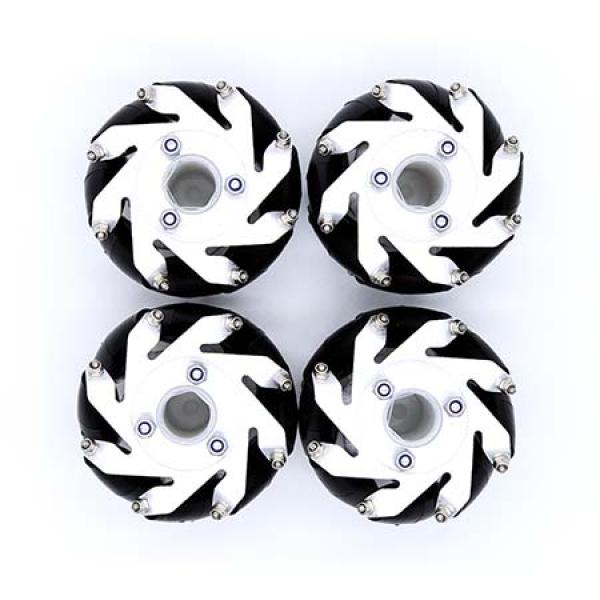

48mm or 60mm Mecanum Wheels

Note: the price is for 4 mecanum wheels. Coupling and other components to connect to your AGV or equipment are Not included.
It is the smallest size Mecanum wheel in all of our Aluminum mecanum wheel.Each wheel is comprised of a series of rollers,Using rollers set on 45° rotational axis parallel to the rotational axis of the wheel.The set of 60mm mecanum wheels include 2 left wheels and 2 right wheels.You can also use universal hubs to connect the wheels and motor.All of you need to do is to add your drive motor,controller boards and batteries. We can provide many colors of Aluminum plates for wheels to meet your requirements.

Number of Rollers:8
Number of Plates:2
Body material: Aluminum Alloy
Roller material: PP+PE
Spacer material: Aluminum
Length of roller:30mm
Net weight:86gx4
Load capacity: 10Kg
60mm Mecanum Wheels
Compatible Hubs:
1. If the wheel is used to be connected with robot and servo motor, we provide free accessorie of a plastic cross axle and an axle center hub, The Cross axle is to be connected with robot, and the axle center hub is to be connected with servo motor.
2. If the wheel is used to be connected with DC Motor, you can use following hubs:
4mm Hub 18013
4mm Hub for 60mm Mecanum Wheel 18019
6mm Hub for 60mm Mecanum Wheel 18021

14209MW48 48mm mecanum wheels

MW60BK Mecanum Wheels
Yellow and Blue are out of stock and production.
