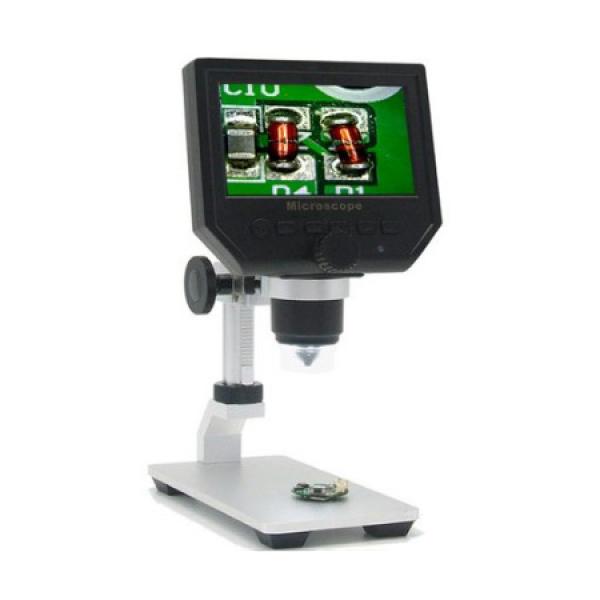

3.6MP USB Electronic Microscope with OLED screen for PCB repair

$58.00

Specification

G600-EM

Electronic Microscope for PCB Repair

Main parameters:
1: Pixel: HD 3 .6MP CCD
2: Display: 4.3 inches HD OLED display.
4: Magnification: 1-600X continuous magnification system.
5: Object distance: 15mm-- infinity.
6: With built-in lithium battery, Continuous working for 6 hours.
7: Languages: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portuguese, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, simplified Chinese.

4.3 inch HD LCD display electronic microscope with 600X magnification, adjustable high brightness 8 LEDs, 16 languages and portable size, this digital microscope will help you see and analyze tiny objects in microscopic details. Built-in lithium battery can continuously work for 6 hours. Come with a metal holder to help support the microscope. Open the doors of the micro-world for you. Features:
HD 3.6MP CCD provides you clear image and it helps you to see tiny objects easily with the professional microscopic lens.
Built-in super lithium battery, can work for 6 hours continuously.
4.3 inch LCD display, allowing you to instantly see all your observations in detail and providing you a view of 1080P/720P/VGA resolution.
Supports 1-600X continuous magnification system, convenient & easy to use & carry.
Adjustable high brightness 8 LEDs, available for working up to 100 thousand hours.
Support inserting memory card to take photos and video for network sharing and computer saving.
USB charging style, easy to find the interface to charge.
The closest distance between microscope lens and the object is 15mm and the magnifying times will be shorter as the distance increasing.
Wide usage: Mobile phone maintenance, QC inspection, education purpose inspection, industrial inspection, print industrial, jewelry & stamp(collections), textile industrial and biological inspection.electronic microscope

Function Setting Key:
Resolution: 1080P, 720P, VGA
Date Tag: displayed /not displayed
Motion Detection: ON/OFF (When it's on, it will start to record a video automatically, as soon as detecting something's moving.)
Cyclic Record: off / 3 minutes / 5 minutes / 10 minutes (If the memory card is full, it will delete the first video and save the new video automatically.)
Exposure Value: +2.0 (0) -2.0
Format: Yes/NO
Language: 16 kinds of languages
Automatic Shutdown: off, 1 minutes, 3 minutes,
Automatic Turn off the LCD: off, 1,3,5 minutes
Factory Reset: Yes/No
Light Source's Frequency: 50HZ, 60HZ
Time Setting: year, month, day, hours, minutes, seconds
Image Rotating: on/off
Light: on/off
Software Version: V1.10
Microscope

Mode Button:
Recording Video Mode
Taking Photos Mode: (5M, 2M, 1.3M, VGA) press “OK” button for taking photos
Playback Mode: delete, lock/unlock
Button: left button, right button, OK button(photo/video, open key)
Specifications:
Color: Black + Silver
Material: ABS Plastic + Aluminum
Plug: EU / US / UK (Optional)
Input Voltage: 110-240V
Pixel: HD 3.6MP CCD
Display: 4.3in HD LCD Display
Magnification: 1-600X continuous magnification system
Object distance: 15mm-infinity (depend on the different distance)
LED Light Quantity: 8pcs
Battery: Built-in 605080 lithium battery 3.7V, 2500mA
Battery Continuous Working: about 6 hours
Charging Time: about 4 hours
Languages: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portuguese, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese and Simplified Chinese(16 kinds of languages)
Item Size: 15 * 12 * 31cm / 5.91 * 4.72 * 12.20in
Item Weight: 530g / 18.70oz
Package Size: 20.5 * 16 * 8cm / 8.1 * 6.3 * 3.1in
Package Weight: 820g / 28.92oz
Microscope View

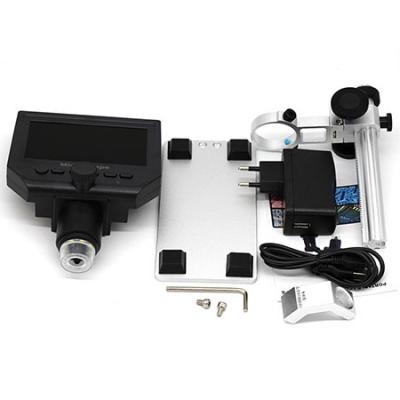

Package List:
1 * Microscope
1 * Power Supply
1 * Data Line
1 * Metal Stand Kit
1 * User Manual(English)
