Electromagnetic linear feeder drive base vibrator

$36.00

Specification

VLF100
VLF140
VLF160
VLF190
SDVC20-S
SDVC31-S
SDVC31-M

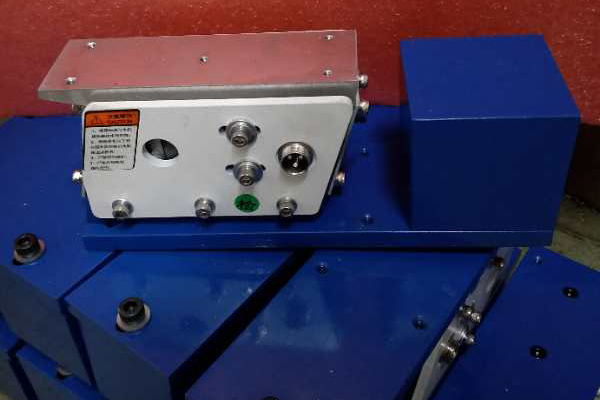

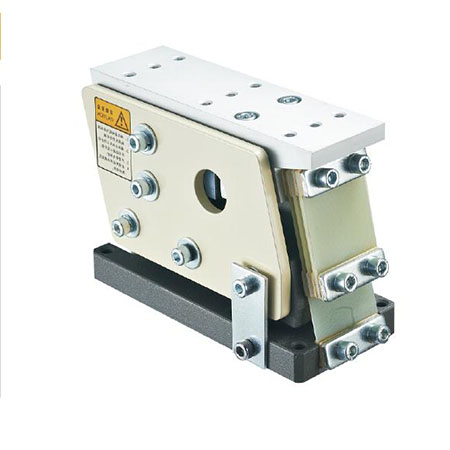

Electromagnetic linear feeding vibrator

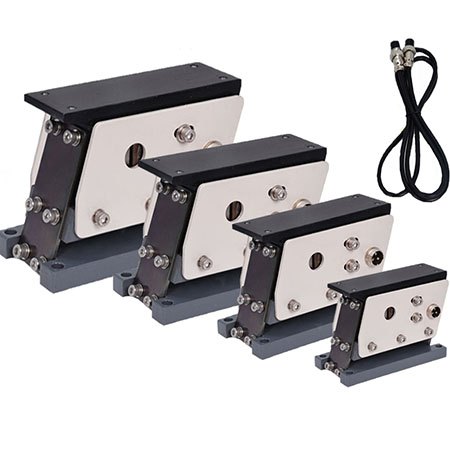

Size 100, 140, 160 or 190 linear vibration units designed for small parts feeding, featured in stable feeding capacity, flexible amplitude and frequency, moderate loaded weight, as well as integrated applications of controllable parameters, which can be applicable in multi-working conditions.

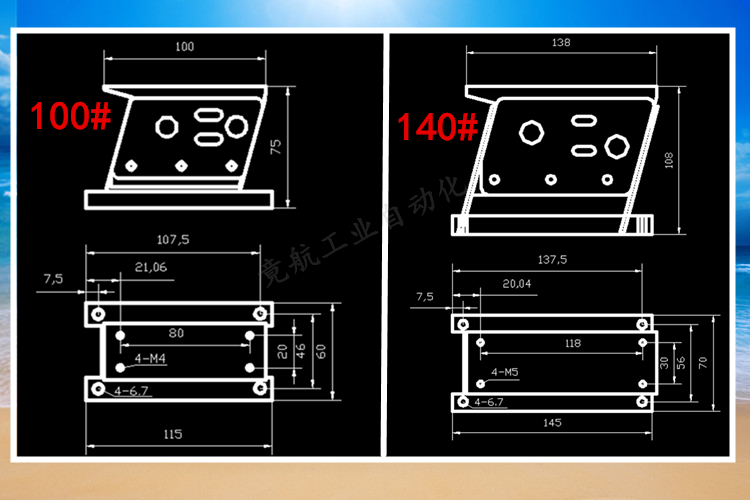

Size 100, 100*60*77 15W 1-2Kgs loading 150-250mm distance tranmission capacity
Size 140, 140*70*103 20W 2-4Kgs 260-350mm
Linear Feeder

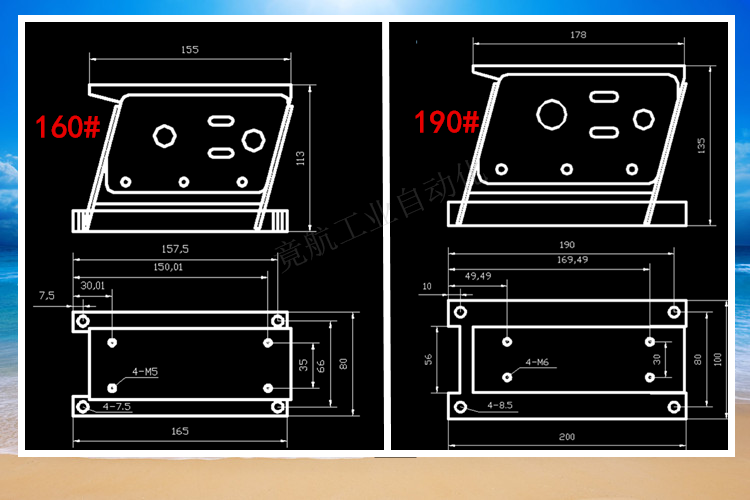

Size 160, 160*80*110 30W 4-6Kgs 350-450mm
Size 190, 190*100*135 50W 6-10Kgs 450-600mm
Sorting Feeder Vibrator

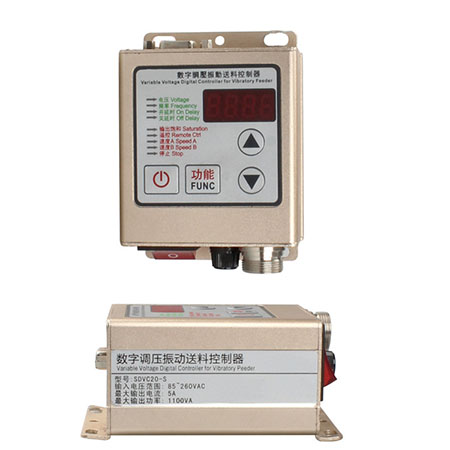

SDVC20-S Variable Voltage Controller
Input current: 0-5A
Input voltage: 85-220V
Input frequency: 50/100Hz
Time lag: 0-20s
Output DC Voltage: 11-13V
Output Current: 0-200mA

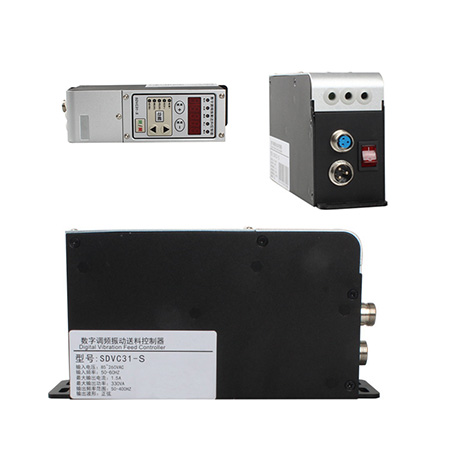

SDVC31-S Variable Frequency Controller
Input voltage: 85-260V AC
Input frequency: 50-60Hz
Max output current: 1.5A
Max output wattage: 330W
Output frequency: 40-400Hz
Output waveform: Sine
