Universal Soldering Station
936 Soldering Station
• temperature range:392°-896°F (200°C- 480°C)
• adjustable temperature control with lock/set screw
• imported A1322 ceramic heating element and senor insures rapid heat-up temperature and lightning-fast thermal recovery
• Celsius or Fahrenheit temperature setting
• temperature adjusted by simply turning the dial
• slender iron handles are insulated and ergonomic-designed for ease and comfort
• accommodates large, medium or small irons
• wide selection of tips available for soldering SMD and through-hole connections
• Power input :220-240V
• Power Output: 24V 50W Package Content
937 Soldering Station
· New design, small size, easy to place, especially space saving;
·The handle is light and will not feel too tired for long time use;
·The heating element adopts imported high temperature resistant material, two-wire heating method, long service life and low replacement cost;
·The heating element uses low voltage power supply to ensure anti-static, no leakage, no interference;
· Unique temperature locking device to prevent staff from cliching temperature;
·200°C-480°C, stable and accurate temperature control;
·The welding tip (tip) matches the international brand, and various nozzles can be selected according to different working conditions of the user.
Input voltage: 220V AC (optional)
Input frequency: 50/60Hz
Power consumption: 50W (MAX)
Temperature range: 200 ° C - 480 ° C
Tip and ground impedance: <2 ohms
Heating core: four-wire stainless steel heater (50W)
Standard tip: 900M

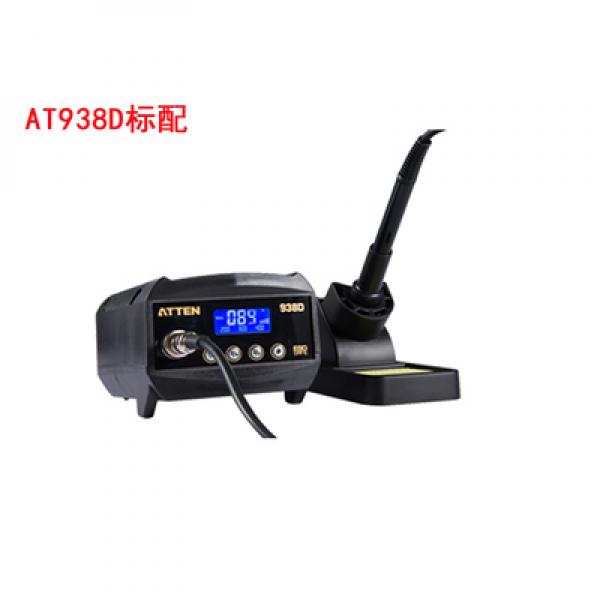

938 Digital Display Soldering Station
New design, LCD large screen display, beautiful appearance.
MCU computer constant temperature PID temperature control loop, temperature control is even more.
It adopts imported high-temperature heating material heating body and has long service life.
Programmable three quick temperature settings for different applications.
The temperature display can be switched between Fahrenheit and Celsius, which is convenient for users.
Intelligent temperature correction to quickly correct the temperature deviation caused by the replacement of the tip.
The heating element damage alarm function.
Input voltage: 220VAC±10%50Hz
Power consumption: 60W
Temperature control range: 200 ° C ~ 450 ° C
Setting method: button adjustment, quick access
Temperature stability: ±1 ° C (static)
Display mode: HD LED
Ambient temperature: 40 ° C
Temperature calibration method: digital calibration
Temperature range: -50 ° C ~ 50 ° C
Tip to ground impedance: <2Ω
Tip to ground voltage: <2mv
Heating core: ceramic two core 60W
