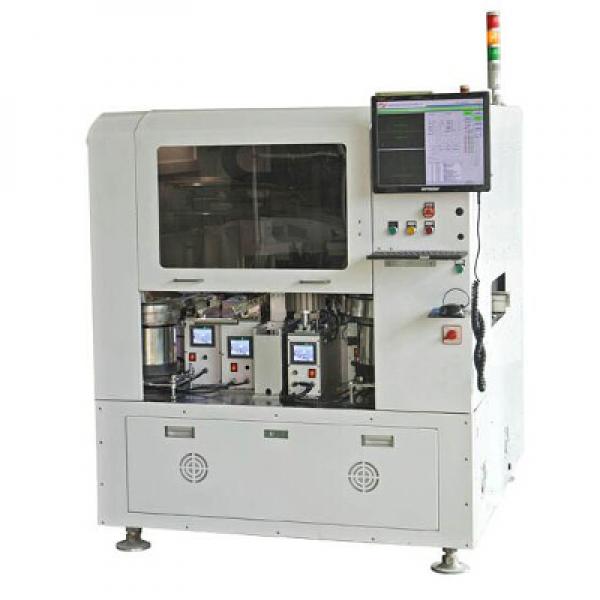

ODD form inserter machine

$59000.00

Specification

OM-II

It is an equipment of modularized design incorporated with odd components, using integrating SMT into AI. It is able to acheve auto-inserting of all odd components at high speed, adaptable to different connector, inserting, transformers etc. It is also equipped with 4 pieces of highly-precise tips and more flexiable feeding system with the simple and effective way.
Flexible, simple, high-efficient, stable are the advantage of OIM-2.
Feature:
Precise unction nozzle. we design nozzles and clips to fit different odd components to ensure that suitable for various usage.
eeder of odd form.Choose proper feeder according to its feeding system, it can be matched randomly. Vertical tape feeder, horizontal tape feeder, rool feeder.
With ISO-9001(2000) certification
Feeder of odd form, choose proper feeder according to its feeding system, it can be matched randomly. Vertical tape feeder, horizontal tape feeder, roll feeder, tube feeder, tray, bowl feeder

Application

Connector, switch, socket transformer coils,ports, capacitors,etc

Specification:

Vision: MARK CCD*1,/Component CCD*1
Conveyer Height 900±20mm
PCB Size(W*L) 50*50mm to 300*350mm
PCB thickness 0.6-2.0mm
Nozzle Quality 4pcs
Stations Feeder 12 tube feeder, tale feeder 18 pc, bowl feeder 8pcs, tray 2 pcs
Compomnent Connector, switch, socket transformer coils, ports, capacitors, etc
Feeder Type Tape Bowl Stick Roll Tray
Air 4-8kg/㎡
AC Power 220-240V 20A
Weigth 1650kg
Machine size L1350*W1400*H1560mm
