CHMT510LP4 4 HEAD pick and place machine



Chat Online

High speed LED strip Pick and Place Machine

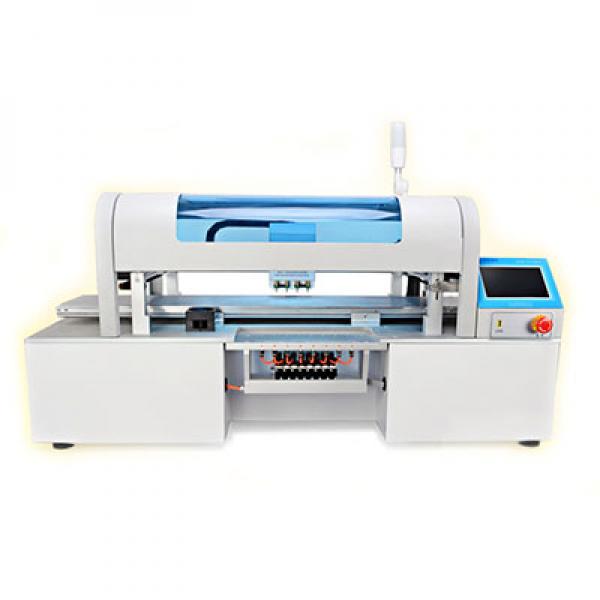

CHMT510P4 is specially designed for LED Strip Pick and Place Surface Mounting, which is high efficiency and low maintenance. Vision Camera, 8 Yamaha feeders, and moving table 1.2m LED strip
High Precision Motion Control System, industrial automation equipment, electronic components Surface Mount Technology
CHMT510P4 LED strip PnP Machine
XYZ Axis Stroke:535mm*380mm*15mm
PCB area:10mm*10mm-240mm*1200mm
EX axis stroke: 765mm
Component Support: 0402,0603-5050,SOP,QFN
Material Support: YAMAHA CL Feeder
Power: AC220V 50Hz/AC110V 60Hz
Dimension: L2050mm*W600mm*H800mm
Need External PC: With quality industrial PC
Power: 250W
Air Supply: 0.5Mpa
Net Weight: 150KG
Nozzle: 4pcs
Mount Speed: do not use the visual: 11000cph, visual function: 6500cph (cph is chip per hour)
PCB Fixed Mode: Magnetic plate positioning
SMT precision: 0.025mm
Material System: 8pcs Yamaha Feeders
Controlling system: XY axis with motor for driving, Z-axis with reset detection, All motors with S flexibility lower or faster speed
Compatible operation: Embedded Linux system
Vacuum detection 2pcs(in-built)mute type pump,(-92Kpa)
Leak detection: Vacuum detection, visual detection
Visual system: Up camera automatic adjust(max 22mm*22mm), Down camera PCB automatic MARK adjust
LED Strip PnP Machine
