Upgrade Your Automation: Lightweight Stepper Motorized Linear Actuators from RobotDigg

When it comes to building precision automation, 3D printers, medical instruments, or custom robotic systems, standard brush-motor linear actuators often fall short. They are heavy, struggle with fine positioning, and require bulky external sensors to figure out where they are
At RobotDigg, we’re excited to highlight our Lightweight Stepper Motorized Linear Actuators (Electric Cylinders). These actuators combine the precise digital control of a hybrid stepper motor with a slim, durable aluminum-extrusion body—delivering high-precision linear movement without the bulk.
Whether you need a sleek, inline setup or a compact, space-saving folded design, we’ve got you covered. Let’s dive into what makes these motorized cylinders the ultimate upgrade for your next build.

What Makes Them Different?
Precision Micro-Stepping: Driven by high-quality 2-phase stepper motors (such as NEMA 17 or NEMA 23), these actuators allow for exact open-loop or closed-loop positioning, variable speed control, and excellent holding torque.
Robust, Lightweight Profile: We utilize T-slot aluminum extrusion for the main housing. This offers a great strength-to-weight ratio and makes it incredibly easy to mount accessories, brackets, or limit switches right onto the body.
Integrated Leadscrews / Ball Screws: Inside the slim profile is a precision-machined screw (lead screw or ball screw) that converts rotary movement into smooth, reliable linear force.

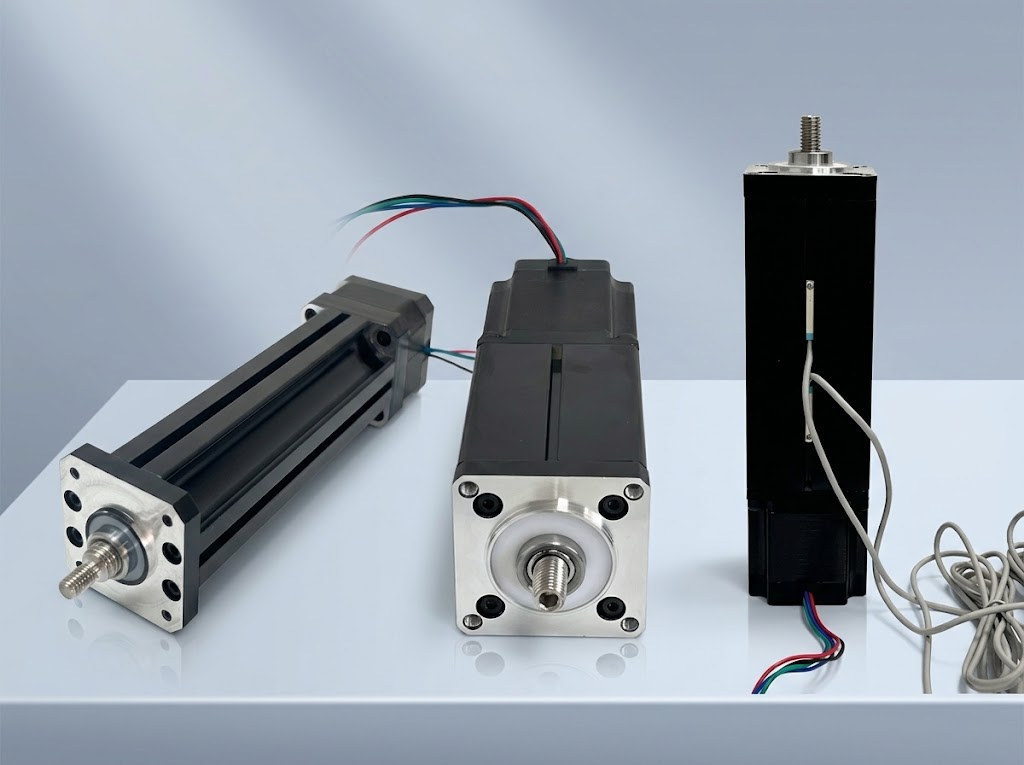

Plug-and-Play Accessories: Comes with pre-installed mounting brackets, end-flanges, and options for integrated magnetic limit sensors for hassle-free boundary control (as shown with the wire-guided sensor in vertical setup).

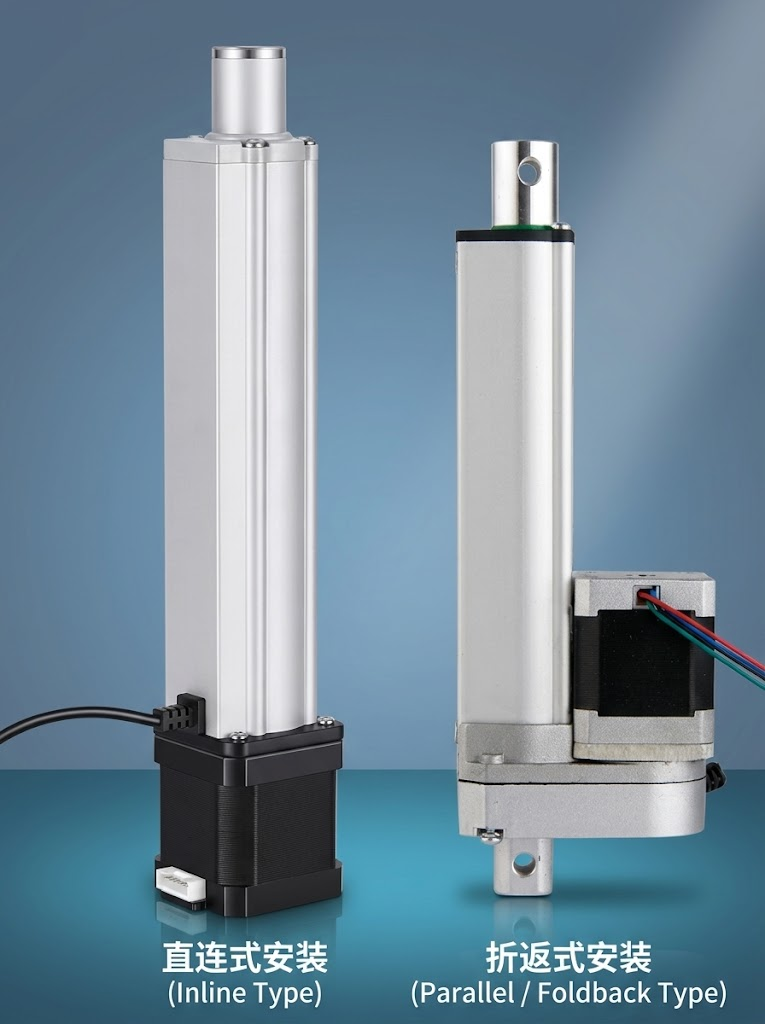

Choose Your Style: Direct-Drive vs. Parallel (Foldback)

Space requirements can make or break a design. That’s why we offer these actuators in two distinct configurations:
1. Inline / Direct-Drive
The Setup: The stepper motor is mounted in a straight, continuous line with the actuator shaft.
Best For: Tight, narrow spaces where the cross-section needs to be as small as possible.
The Advantage: Zero backlash or efficiency loss from gears or belts. Since the motor connects directly to the internal screw, it offers the highest mechanical efficiency, the most direct force, and incredibly smooth response times.
2. Parallel / Foldback
The Setup: The stepper motor is folded back and mounted parallel to the actuator body, connected at the base via a gear or belt enclosure.
Best For: Ultra-compact enclosures or depth-restricted installations where a long, straight actuator simply won't fit.
The Advantage: Significantly reduces the overall axial length. Plus, because it utilizes a base gear/belt drive, it opens up the opportunity for gearing adjustments to multiply your output force.

Built for Versatility

These stepper-driven cylinders are a favorite for:
Custom 3D Printers & DIY CNC: Z-axis control, auto-leveling, or tool-changing mechanisms.
Automation & Sorting: Fast, precise push/pull movements on Delta robot setups or conveyor systems.
Specialty Lab & Medical Gear: Where smooth, micro-millimeter adjustments are required.
Custom Grippers & Mechanical Jigs: Actuating clamps or robotic arms with high repeatability.

Get Exactly What You Need
At RobotDigg, we know one size rarely fits all. We offer a wide array of customizing options:
Sizing: Compact NEMA 14 and NEMA 17 to high-torque NEMA 23 motor frames.
Stroke Lengths: Custom travel distances from 50mm up to 500mm+.
Speed & Force: Multiple screw pitches (e.g., T6, T8, or SFU ball screws) to balance your speed and load needs.
Sensor Integration: Ask for pre-mounted limit switches, encoders, or custom connectors to seamlessly connect to your controllers.

Ready to elevate your hardware?
Check out our extensive lineup of Stepper Motorized Linear Actuators at RobotDigg. Tell us your load, stroke, and space requirements, and our team will help you find (or customize) the perfect direct-drive or parallel motorized cylinder for your project!
