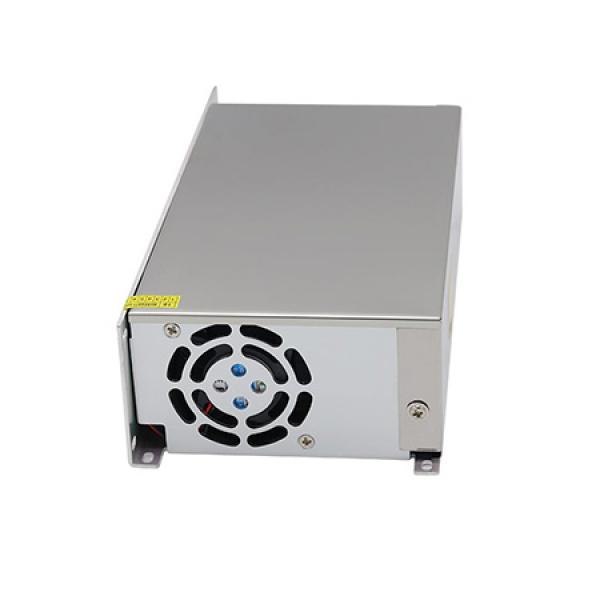

36v 180w or 360w, 48v 400w or 600w switching power supply

$15.00

Specification

S-180-36
S-360-36
S-400-48
S-600-48
S-1000-48

S-400-48 48VDC Power Supply

Output Voltage:48V
Output Type Single Channel
Input Voltage:110V/230VAC(selected by switch)
Output amps 8.3A
DC Output Power:400W
Weight:1.2kgs
Dimension:215*115*50mm
Convert AC input selected by switch
Overload protection: 105%-135% Shut off current,automatically restore
Over voltage protection: 115%-135% of output voltage
Heat from the cold
100% full load burn-in test
Low-cost ,high reliability

New arrival:
36VDC 10A 360W switching power supply
48VDC 12.5A 600W switching power supply

S-1000-48 switching power supply
DC Output Range: 60V 17A
Rated Power: 1000W
Input voltage: 200-250VAC
Range Of Difference:±1%
Efficiency: >80%
Output adjustable voltage range: ±3%
Frequency: 50-60Hz
Leakage current: <1mA/230V
Temperature coefficient: ±0.03%/℃(0~50℃)
Start, rise, hold time 200ms, 50ms, 20ms
Seismic resistance: 10~500Hz,2G 10min, /1 cycle, time 60 points, each axis
Protection: overload, overvoltage, overcurrent, short circuit protection
Pressure resistance between input and output 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC
The working temperature and humidity are between -10 and +60, and the temperature ranges from 20% to 90%RH
The storage temperature and humidity are -20 ~ +85, 10% ~ 95%RH
Product Size: 242*125*65mm
Product Weight: 1.5Kgs
