LMK8UU or LMK8LUU Linear Bearing

$1.00

Specification

LMK8UU
LMK8LUU
Chat Online

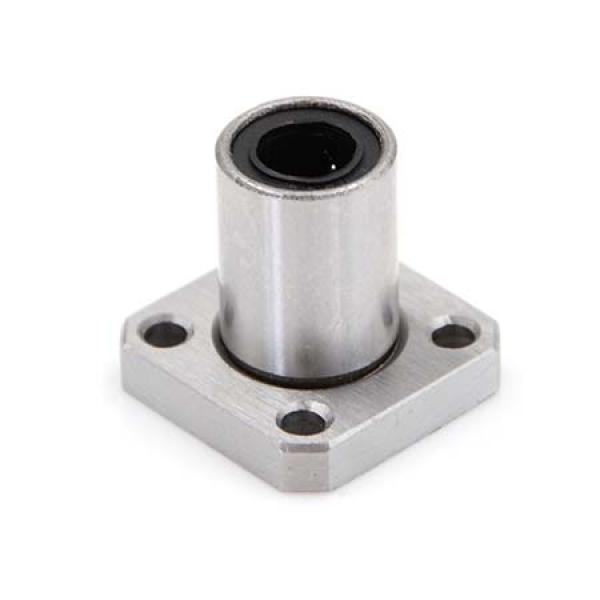

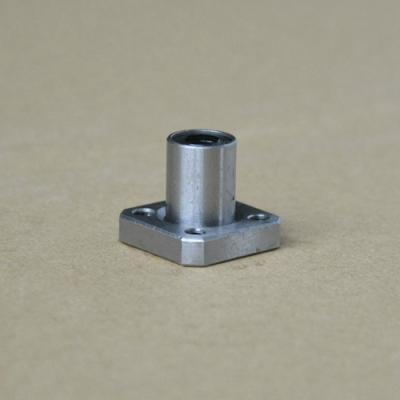

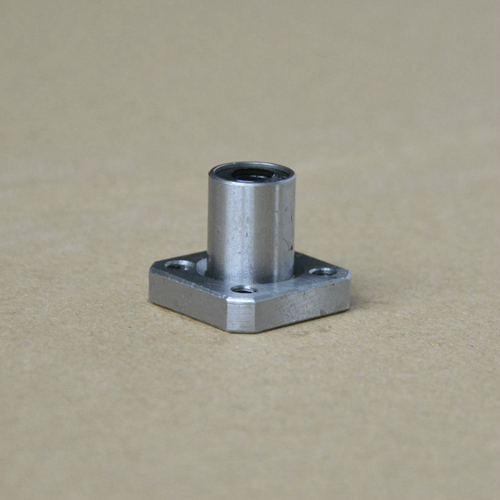

LMK8UU or LMK8LUU Flanged Linear Bearing

Flanged linear bearing LMK8UU
Smooth moving, low friction, high rigidity and long life.
Economical, easy to maintain replace.
Product Name : Linear Bearing
Material : Chrome Steel and Nylon Retainer
Inner Diameter : 8mm/ 0.31"
Outer Diameter : 15mm/ 0.6"
Length : 24mm/ 0.94"
Square Size : 25 x 25 x 5mm/ 1" x 1" x 0.2" (L*W*T)
Mount Hole Dia. : 3mm/ 0.12"
Hole Pitch : 17mm/ 0.67"(Center to Center)
lmk8uu linear bearing
LMK8LUU 8*15*45 Bearing
Type: Flange Linear bearing
Lubrication: Oil or Grease
Dimensions: 8mm x 15mmx 45mm/Metric
ID (inner diameter)/Bore: 8mm
OD (outer diameter): 15mm
Width/Height/thickness: 45mm
