Nema11 51mm high torque stepper

11HY5401-20A
Size:
round shaft
Weight:
0.200Kgs

$12.50

Chat Online

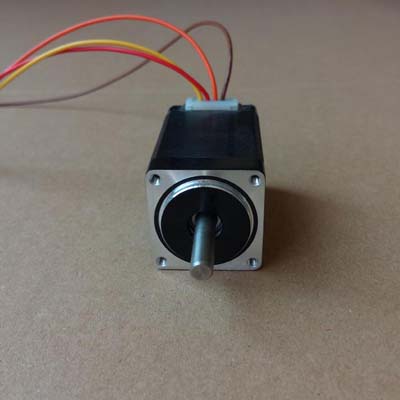

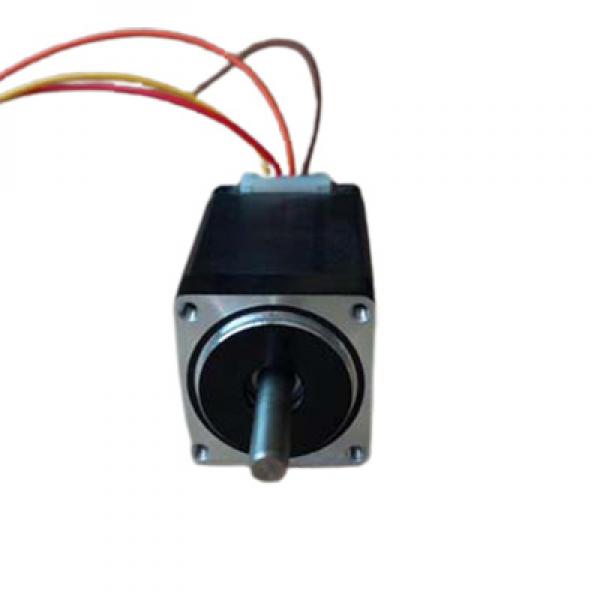

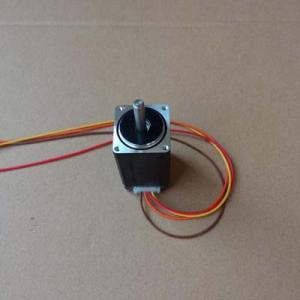

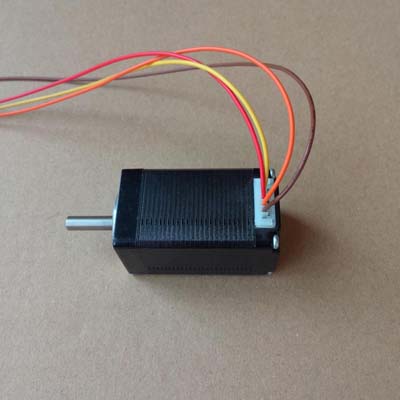

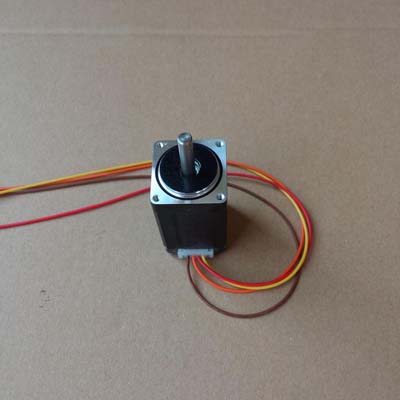

Nema11 51mm Bipolar Stepper Motor

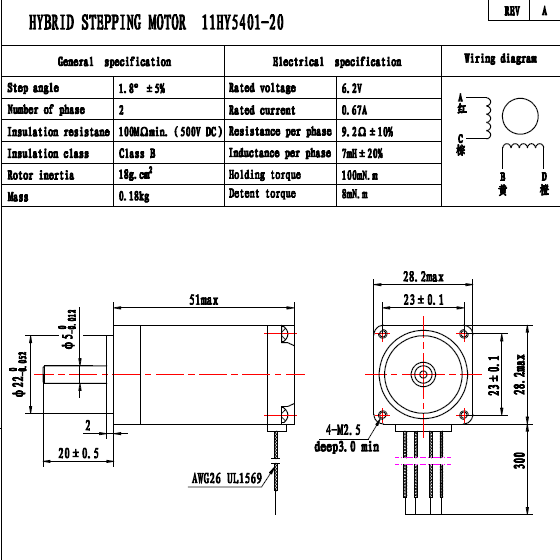

Order No. 11HY5401-20A.PDF

Stepper MotorBipolar 4 Lead Wires
Step Angle1.8°
Holding Torque100mN.m(13.5oz.in)
Rated Current/phase0.67A
Phase Resistance9.2ohms
Recommended Voltage12-24V
Inductance7mH±20%(1KHz)
Length51mm

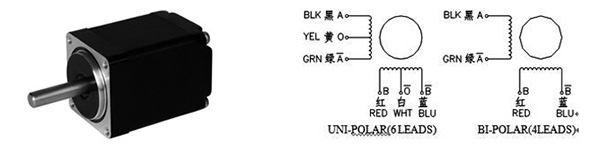

nema11 stepper motor wiring

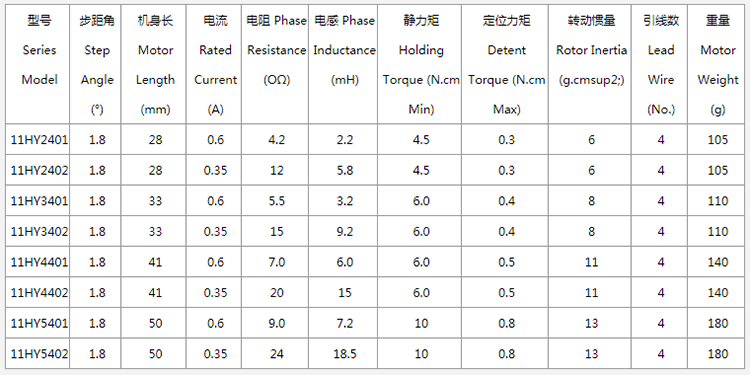

nema11 stepper motors
