PT-GD401 or PT-GD402 Stepper Motorized Lab Jack

$289.00

Specification

PT-GD401
PT-GD402

Stepper motorized lifting platform

Motorized Lab Jack

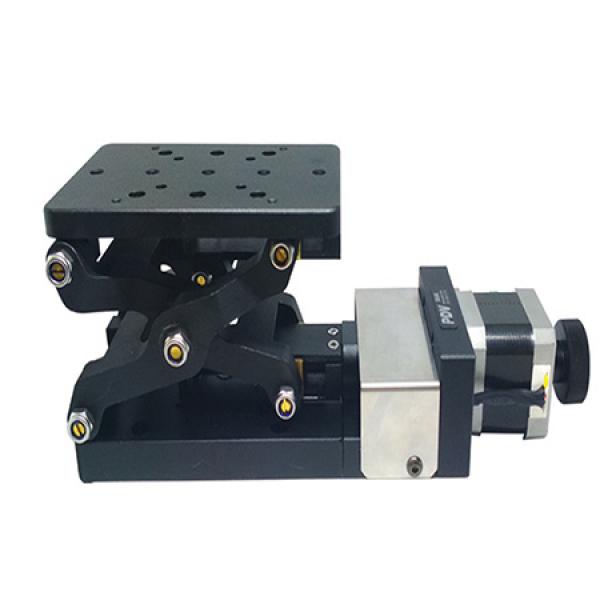

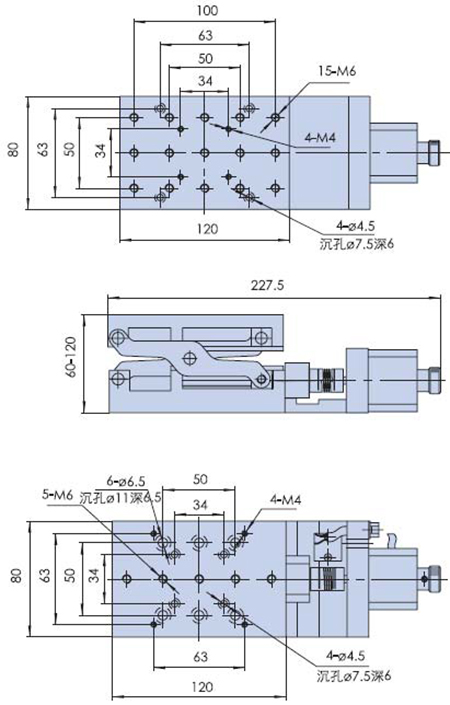

1 Item Number: PT-GD401
2 Travel Range: 60±2 mm
3 Dimension of Platform: 120mm x 80mm
4 Drive Mechanism: Grinding Screw
5 Travel Guide: Slide Rail
6 Stepper Motor (1.8°): SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Material – Finish: Aluminum Alloy - Black-Anodized
8 Load Capacity: 5Kgs
9 Weight: 1.15Kgs
Accuracy Specifications
1 Minimum Adjust Distance: 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver
2 Max Velocity: 5mm/sec
3 Repeatability: 10μm
4 Backlash: 40μm
5 Lost Motion: 30μm
stepper motorized lift

Structure Specifications

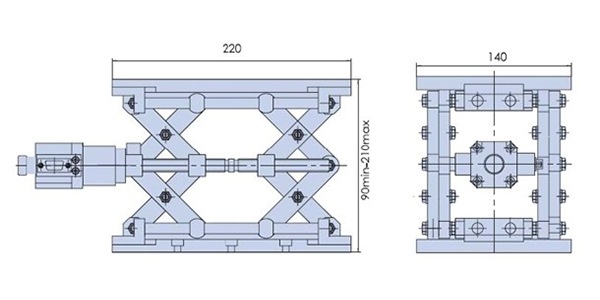

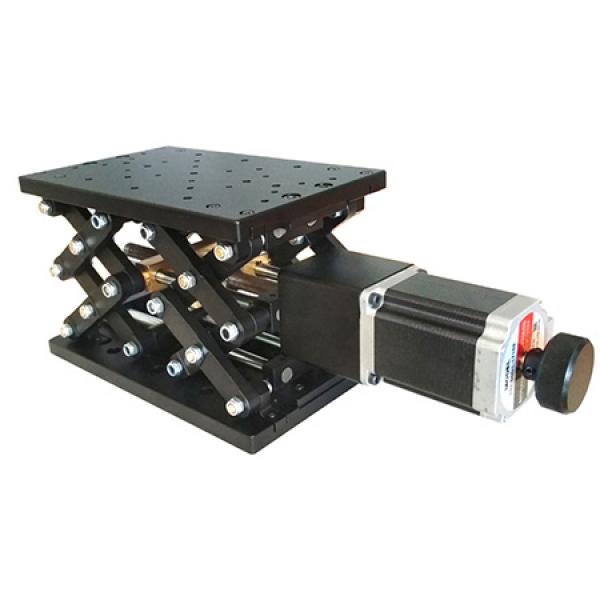

1 Item Number: PT-GD402
2 Travel Range: 110 mm
3 Dimension of Platform: 220mm x 140mm
4 Drive Mechanism: Grinding Screw
5 Travel Guide: Slide Rail
6 Stepper Motor (1.8°): SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Material – Finish: Aluminum Alloy - Black-Anodized
8 Load Capacity: 10Kgs
9 Weight: 4.7Kgs
Accuracy Specifications
1 Minimum Adjust Distance: 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver
2 Max Velocity: 5mm/sec
3 Repeatability: 10μm
4 Backlash: 4μm
5 Lost Motion: 3μm
Motorized Lab Jack
