1605 Ball Screw and Nut with FK12 for SFX-100 Actuator

$28.00

Specification

SFU1605L250-FK12
SFU1605L300-FK12
SFU1610L300-FK12
SFU1610L350-FK12
Chat Online

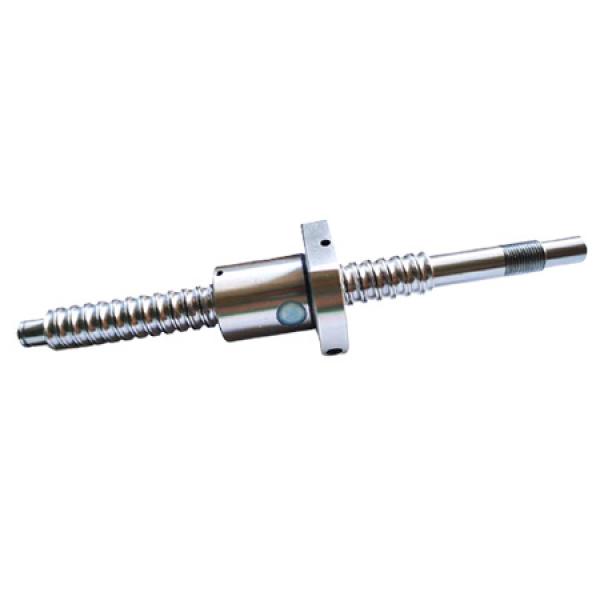

1605 Ball Screw with machined ends

1 pc of SFU1605 ballscrew , 250mm long.

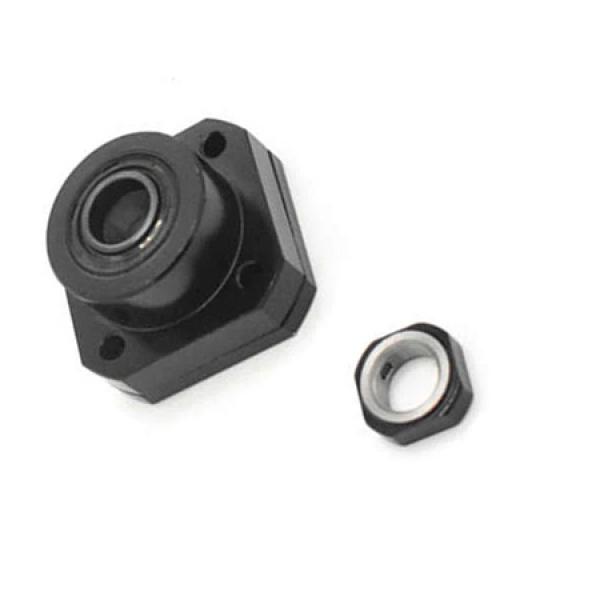

1 pc of FK12 (fix bearing)
SFX-100 Actuator needs 4 sets of the 1605 ball screw and 4 sets of FK12 support end.
For a longer travel 150mm, SFU1605 ballscrew 300mm long with machined end for FK12 support end.

SFX-100 or SRT100 Motion Sim Actuator

100mm travel of SFX-100 Actuator set detail:
1 pc hollow shaft OD30mm length 270mm
1 pc of SFU1605 ballscrew , 250mm long.
1 pc of FK12 (fix bearing)
1 pc of LMEK30UU
1 pc of 10-16mm coupling(D30,L40)

SRT100 set detail:
1 pc hollow shaft OD30mm length 270mm
1 pc ofSFU1610ballscrew , 300mm long.
1 pc of FK12 (fix bearing)
1 pc of LMEK30UU
1 pc of 10-14mm coupling(D30,L40)

150mm travel of SFX-150 Servo Actuator set detail:
1 pc hollow shaft OD30mm length 300mm
1 pc of SFU1605 ballscrew , 300mm long.
1 pc of FK12 (fix bearing)
1 pc of LMEK30UU
1 pc of 10-16mm coupling(D30,L40)

150mm travel of SRT150 set detail:
1 pc hollow shaft OD30mm length 350mm
1 pc ofSFU1610ballscrew , 350mm long.
1 pc of FK12 (fix bearing)
1 pc of LMEK30UU
1 pc of 10-14mm coupling(D30,L40)
