Disposable Razor Assembly Production Line

$5555.00

Specification

JG-TXDR
JG-TXDL
JG-HTHZ
JG-HT
JG-KB
Chat Online

Disposable Razor Assembly Line

You can buy these kinds of disposable razors from us at a price of 0.5USD and 0.6USD per pack poly bag of 5 pieces. For bulk orders, welcome your inquiry to sales@robotdigg.com

Disposable razors are quite similar to the toothbrush which has a wide market. Ever before in China, when you go to a hotel, a disposable razor is provided in every room reserved.
If you want to have your own disposable razor assembly production line
1. Do you already have the plastic parts supply and the blades?
If you do Not have plastic parts, you will need an Injection Molding Machine for the production. Big cap, small cap, (spacer or separator) the plastic cover and the handle.
2. Do you have an idea of which disposable razor you want to produce?
One, two, or three blades, automatic handle assembly, or manual machine. You'd better send us the razor samples or do the same razors as we do for a quote.
3. Turnkey solution of disposable razor assembly?
After deciding which disposable razor you want to produce, first, you will need to pay the price for the molds of the injection parts and then make the decision to buy the injection molding machine at your local or from us.
Once the injection parts Molds are ready, the good news is that we have a supply of blade, spacer, lubricant strip and so on for the disposable razors.
We can come to the Assembly Production Line at last, the production capacity is about 2000-3000 per hour per assembly line.
Disposable Razor Assembly
Lubricant Strip
A general quotation for reference
Razor Assembly Line


The full-automatic disposable razor assembly line is suitable for assembling the Disposable Razor Head. Automatic assembly and riveting the blades, plastic parts, spacer into a razor head. Can be used with Lubricate Machine to stick the lubricating strip and put it on the protection cover automatically.
disposable razor

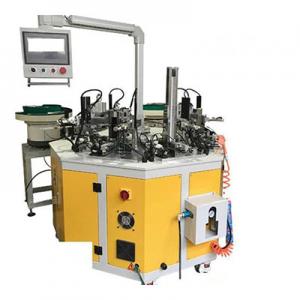

Razor Head Assembly Machine--Round
Technical Data:
Razor Type: Disposable razor head
Machine Procedure: Assemble ledge, blade, spacer, the platform automatically
Capacity: Twin Blades 48 pcs/min
Three Blades 45 pcs/min
Power:3KW
Main Voltage:380V-50HZ
Dimensions:2500*2300*1800mm
Machine weight:1000KG
Razor Lubricant and Cover

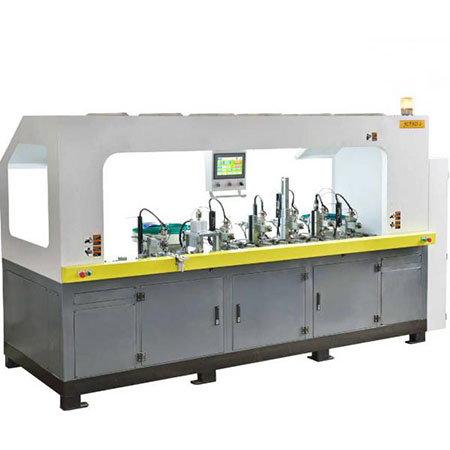

Razor Head Assembly Machine--Linear
Technical Data:
Razor Type: Disposable razor head
Machine Procedure: Assemble ledge, blade, spacer, the platform automatically
Capacity: Twin Blades 40 pcs/min
Three Blades 38 pcs/min
Power:3KW
Main Voltage:380V-50HZ
Dimensions:3600*1400*2100mm
Machine weight:1300KG

Automatic Disposable Razor Assembly Line

Lubricant and Cover Machine
Technical Data:
Razor Type: Disposable razor head
Machine Procedure: Paste lubricant and install cover automatically
Capacity: Same as razor head machine
Power:1KW
Main Voltage:220V-50HZ
Dimensions:2600*850*1350mm
Machine weight:390KG

Lubricant Machine
Technical Data:
Razor Type: Disposable razor head
Machine Procedure: Paste lubricant automatically
Capacity: Same as razor head machine
Power:0.6KW
Main Voltage:220V-50HZ
Dimensions:1850*1350*1480mm
Machine weight:180KG

Razor Handle Machine
Technical Data:
Razor Type: Disposable razor head
Machine Procedure: Instal handle automatically
Capacity: Same as razor head machine
Power:1KW
Main Voltage:220V-50HZ
Dimensions:1850*750*1360mm
Machine weight:370KG

Disposable Razor Handle

Rotary Screw Air Compressor

If only 1 set of razor assembly line 7.5Kw or 11Kw Screw Compressor is enough, for 2 or 3 sets of disposable razor assembling line 15Kw or 22Kw Air Compressor is recommended.
Screw Compressor for Razor Assembly Line

Razor Components

To run a test of the disposable razor assembly line, you'd better prepare 50,000 sets of the plastic part injection molding made. Blades, spacer, lubricant strip(if needed), glue(for lubricant strip) are also needed for running the test.
https://www.robotdigg.com/product/1895/

You may have a question as that why we do Not recommend the linear mode razor assembly line.
The price is higher, and also the linear drive adopts chain, it needs frequent maintenance.
