Slip ring hollow shaft through bore rotating miniature electrical connector

$6.80

Specification

MT0522-S06-WB
MT1256-P0610-VC

Hollow shaft slip ring or rotary collectors

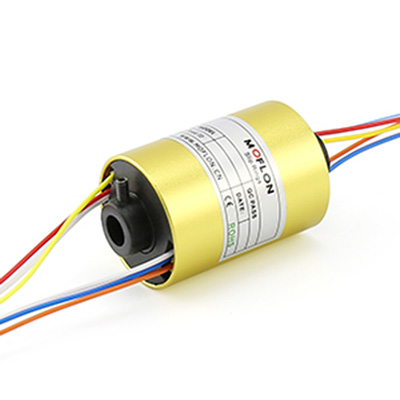

MT0522 series provides a 5mm through-bore for routing of hydraulic or pneumatic lines or hydraulic or pneumatic rotating shaft installation, and a compact 22mm outside diameter,features long life, fiber brush contact technology for ultimate performance in many challenging applications.
MT0522 series are standard, off-the-shelf products, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.It can transmit signal(2A), 5A current when 360 degree free rotating

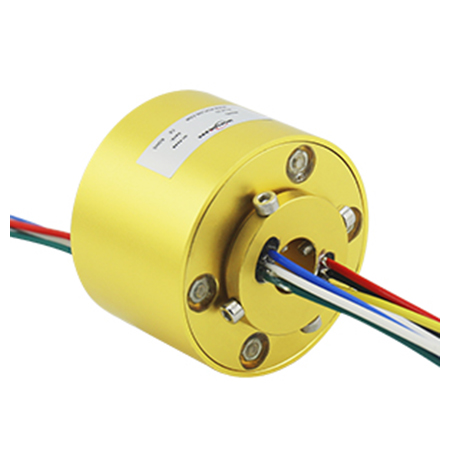

MT1256 series provides a 12.7mm through-bore for routing of hydraulic or pneumatic lines or hydraulic or pneumatic rotating shaft installation, and a compact 56mm outside diameter,features long life, fiber brush contact technology for ultimate performance in many challenging applications.
MT1256 series are standard, off-the-shelf products, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A current when 360 degree free rotating.
Model Number: MT1256-P1210
Hole Size(mm): 12.7mm
Type: Hollow Shaft Slip Ring
OD: 56mm
Voltage: 600 VDC/VAC
Quality Standard: ISO9001: 2008
Material: RoHS Compliant
Length: 54.8mm
Default quality level: VC version
