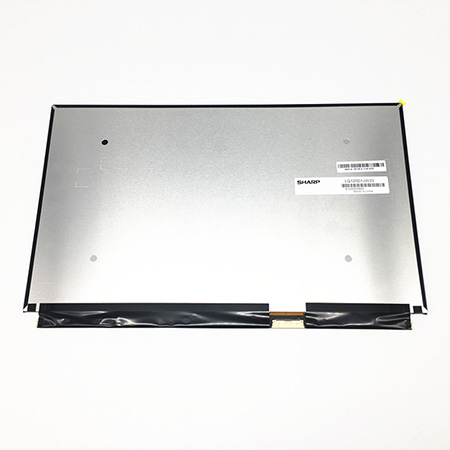

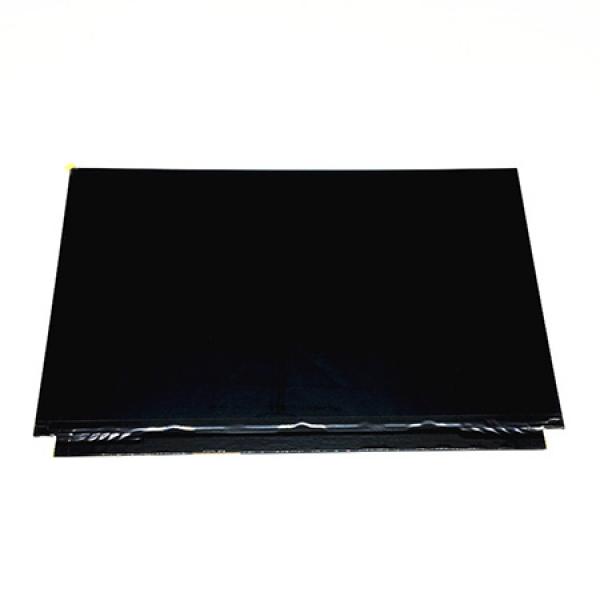

12.5-inch 4K LCD screen display LQ125D1JW31 LQ125D1JW33

$109.00

Specification

LCD4K-125

Sharp 4K LCD for 3D Printing

Active Area (W x H): mm
Backlight System: LED (built-in driver)
Brightness: nits
4K LCD
Contrast Ratio:
Description:
This 16:9 Quad-HD module features extremely high contrast, along with a wide viewing cone. The backlight has a 50,000-hr rating, and its driver has an adjustment to provide four different levels of backlight illumination: 400 nits,. Brightness figure quoted is the factory setting. Module has anti-glare and 3H hard coating.
Diagonal Size: 12.5-inch
Display Mode: Normally White

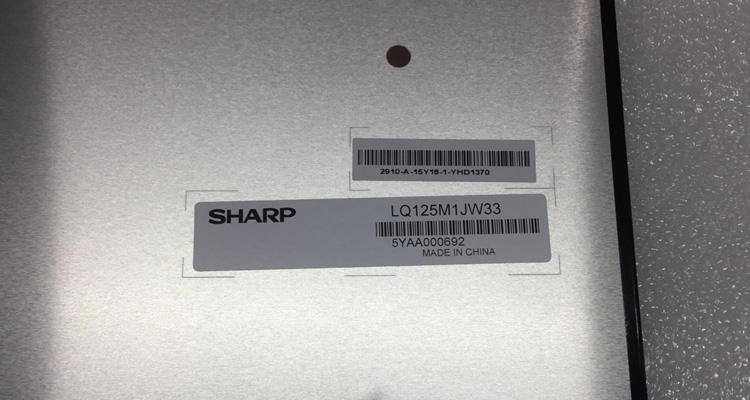

Family: LQ125D1JW31 LQ125D1JW33
Interface: eDP 4 Lane
Operating Temperature Range: 0°C to +50°C
Outline Dimensions (W x H x D): mm
Pixel Format: 3840 x 2160
Response Time: 25 ms
RoHS: Yes
Status: New
Storage Temperature Range: -20°C to +60°C
Type: Quad-HD+
Viewing Angle - 12 o clock: 80°
Viewing Angle - 6 o clock: 80°
Viewing Angle - side to side: 160°
