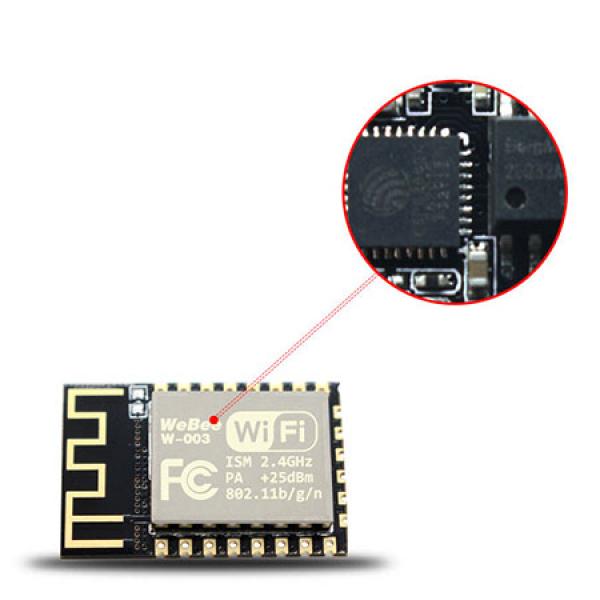

WeBee Industrial Serial UART ESP8266 WiFi Module

$4.40

Specification

W-003

WIFI Module

W-003 is a Serial WiFi UART to Wireless Transceiver Networking Module ,it uses ESP8266 WiFi chip which is a highly integrated chip designed for the needs of IoT.
W-003 is a fully integrated single 2.4GHz band 802.11 b/g/n module, intended for portable and battery powered applications, where Wi-Fi connectivity is needed.
W-003 provides a low cost and simple Wi-Fi solution for devices that run an operating system and a TCP/IP stack on-board, but still offers the benefits of a module-small form factor, easy integration and certifications.
W-003 integrates AT command and support smartconfig, serial transparent transmission, it makes that easy to send the data to the internet and implement the remote control. Features:
1.Antenna:PCB on board
2.Transmission distance: 50 m(open environment)
3.Simplelink:one key access to WiFi
4.Transmission rate:Max to 8K byte/s
5.Support AP and STA role

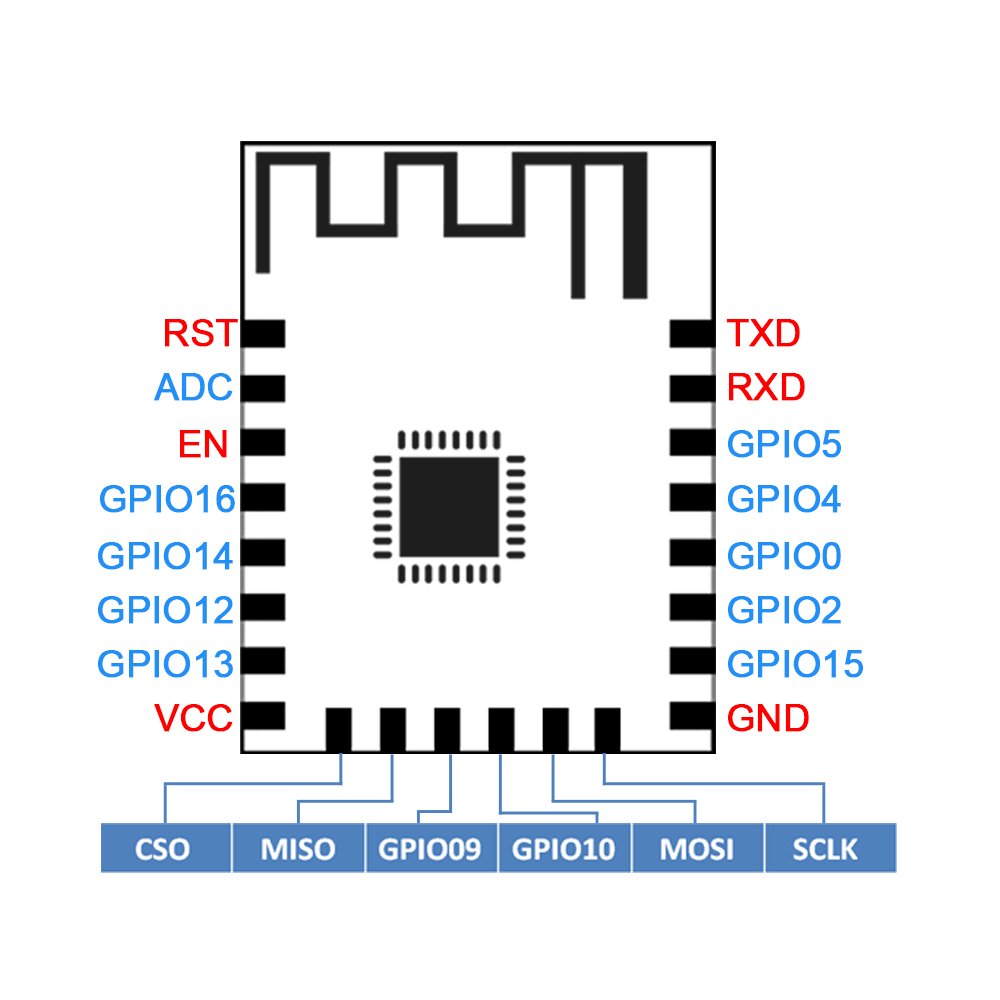

6.ESP8266 All IO ports expansion,including debug ports
ESP8266 WIFI Module
Parameter:
PCB Layers : 4
Voltage:DC 3.0 ~ 3.6V(3.3V is recommend
Operating Temp: -40°C ~ 85°C (industrial)
Storage Temp: -45°C ~ 125°C

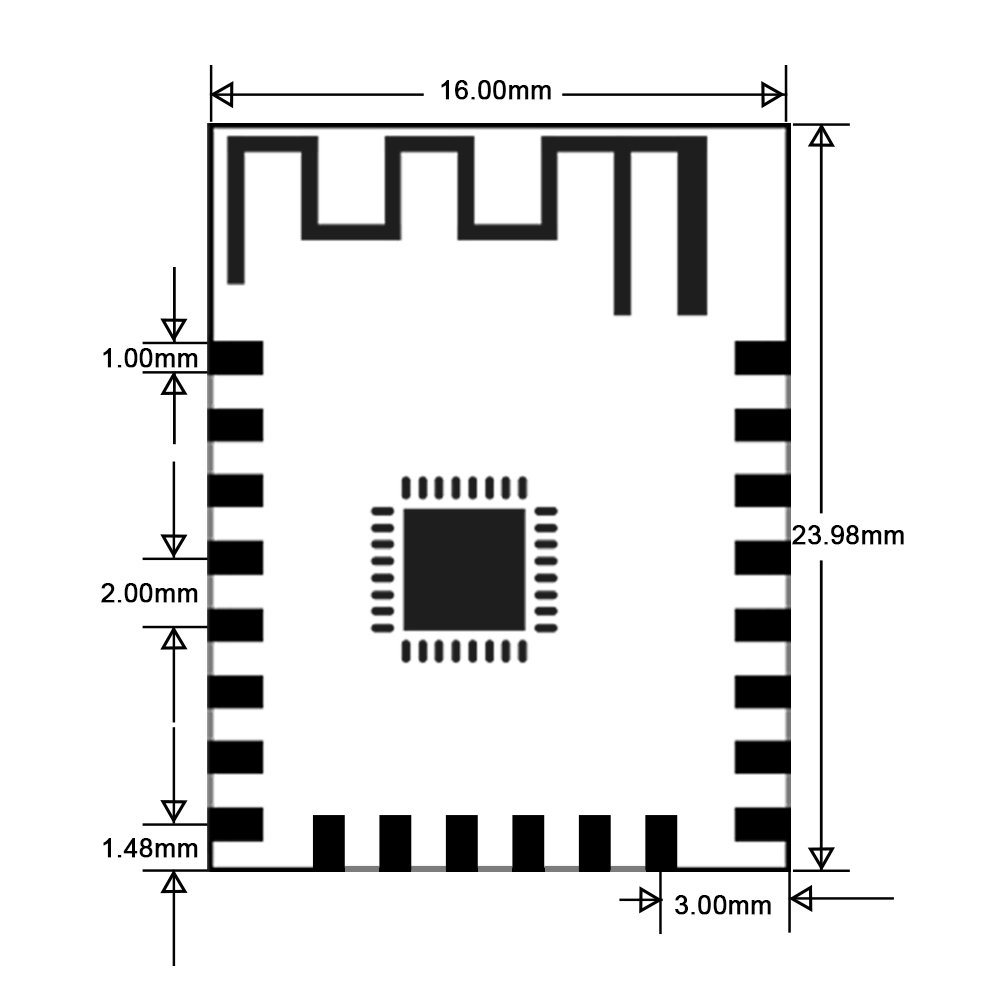

Size:176mm*24mm*3mm
Wifi Module
