Pneumatic printed circuit board testing jig Test Fixture

Pneumatic printed circuit board testing jig Test Fixture

PFC0805-42

PFC1008-42

PFC1310-42

PFC1513-60

PFC1815-60

PFC2418-60

Size:: 50*80
Weight:: 3.200Kgs

Size:: 80*100
Weight:: 3.400Kgs

Size:: 100*130
Weight:: 3.900Kgs

Size:: 130*150
Weight:: 5.900Kgs

Size:: 150*180
Weight:: 7.900Kgs

Size:: 180*240
Weight:: 9.400Kgs

$88.00

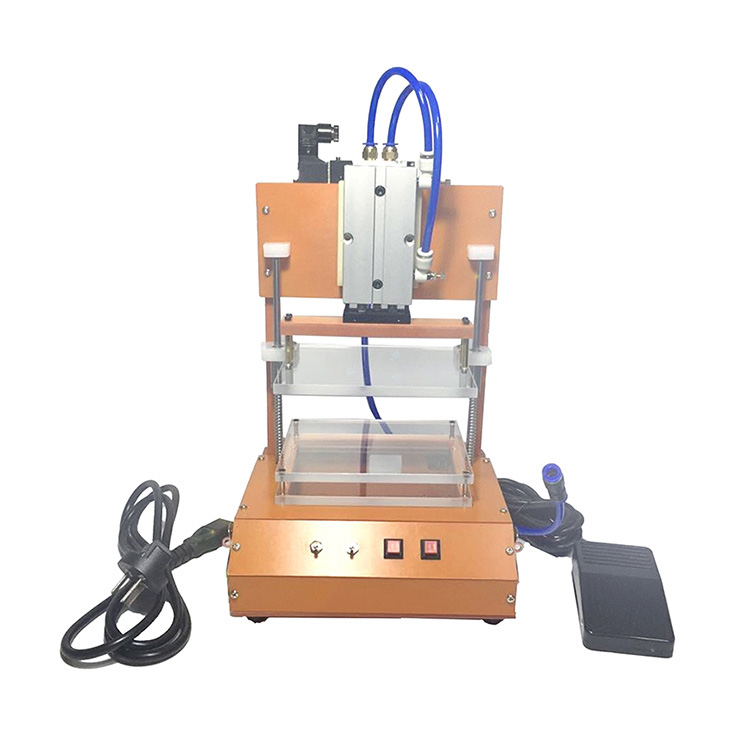

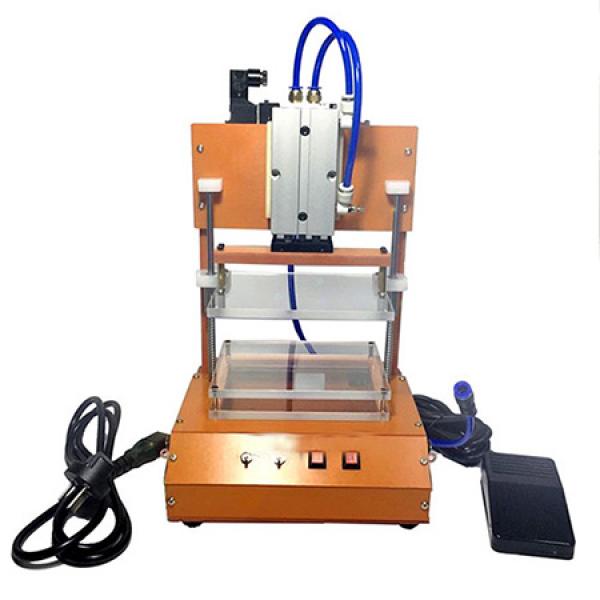

Pneumatic PCB Test Fixture

This test way means PCB are tested by Fixture testing machine. Time is short for 1 PCS or panel,always in 5-10 sec. But need to make a test fixture for each kind PCB. It is not economical for PCB prototype,so, Fix tooling testing is suitable for Mass production order. PCB e-test fixture could be reused for repeat order.

Pneumatic PCB Test Fixture
PCB E-Test is shortening of electrical Test.
E-Test is very important for PCB because of only the PCB passed E-Test, PCB could be 100% usable.
E-Test process could ensure all PCB are no short or open before delivery to customers.
Pneumatic PCB E-test
