12V 3D Printer Mother Board suitable for A4988 and LCD2004

$28.00

Specification

12V-KFB3.0

Take full account of voltage stability, board heat dissipation, practicability and so on, in our research team has been verified. The design of the circuit takes full account of the protective facilities, and the double self recovery fuse prevents the circuit from short-circuit burning out of the device. The 5 channels of high current resistant diodes to prevent reverse connection, even if the power supply is positive and negative, it will not burn the controller board. The pin is designed to be compatible with BaseV1.0 and MKS GenV1.4 controller board, Marlin, Repefier and other open source firmware which can be downloaded from its website directly.
Parameter:
Product size: 100*100mm
Screw hole size: 3.3mm * 4
Power input: 12V ~ 24V
Support motor drive number: 5
Support motor drive type:
A4988, DRV8825, LV8729, MS4998,
MS4989, TMC2100, TMC2208, TMC2130 and so on
Support control panel: LCD2004, LCD12864, LCD1602, touch color screen
Compile environment: Arduino IDE Firmware: Marlin

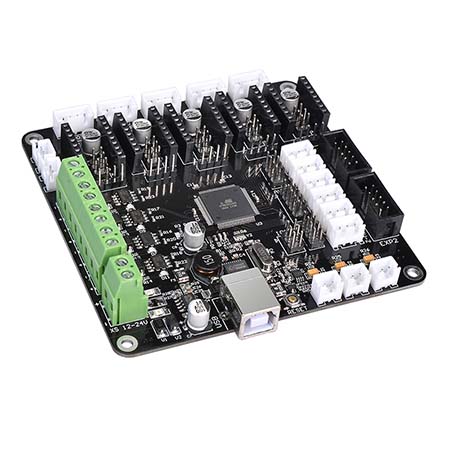

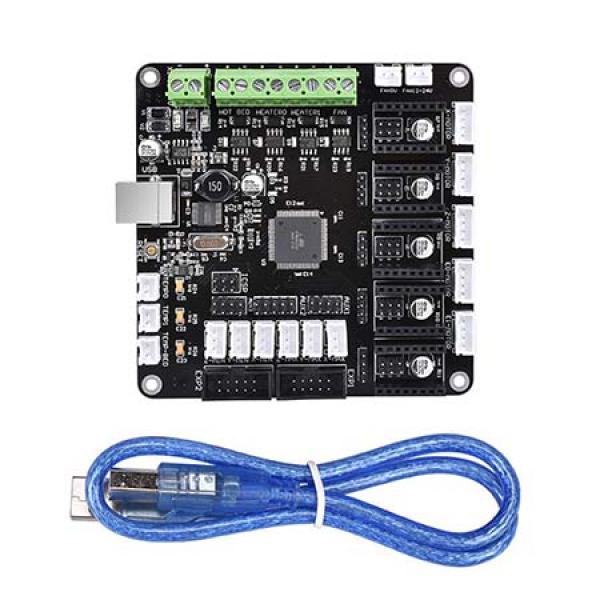

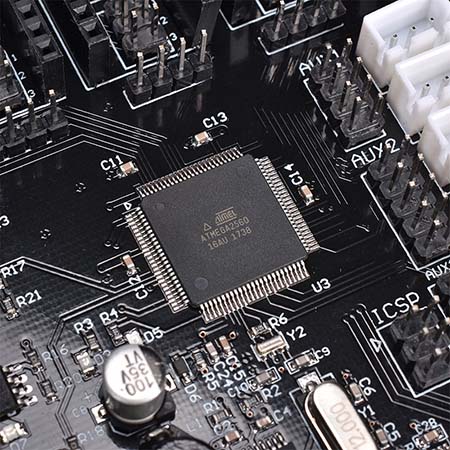

KFB3.0 3D Printer Motherboard
The more details KFB 3.0 manual ,please check out by this link:
https://www.dropbox.com/s/jnvajqscnfwzlg3/KFB3.0%20specification%EF%BC%89.pdf?dl=0
Advantage:

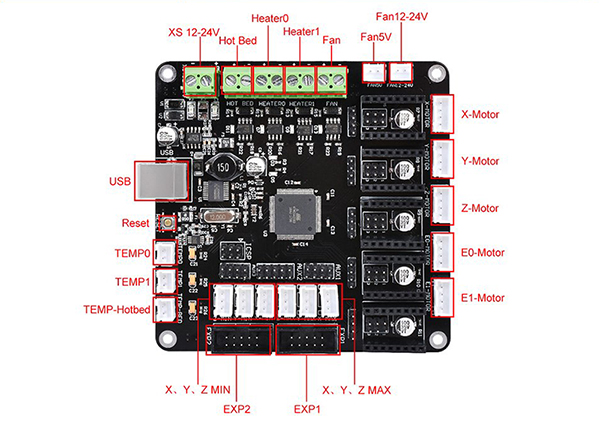

1.Support LCD screen LCD2004, LCD12864., LCD1602, touch color screen, etc., insert EXP1, EXP2 interface, use the touch screen, insert AUX1. Four screws holes to use M3 screw.
2.Support high-power output hot bed, two-color printing, while supporting 5V, 12 ~ 24V fan.
3.USB serial chip using CH340T chip, the maximum 2Mbps, communication stability is not lost packets to solve the reduced version of the Windows driver can not be installed to support a full range of Windows, mac, liunx operating system
Notice:
1 Do not power on the motherboard wiring or replacement of each module except for (SD, USB)
2.Please note that the positive and negative wiring
3. Before the power, please check to determine the connection interface is correct, so as not to damage the motherboard
4 .Do not touch the motherboard with wet hands
5.When an emergency occurs, please press the RESET reset button on the motherboard or disconnect the power
Integrated 3D Printer Board
