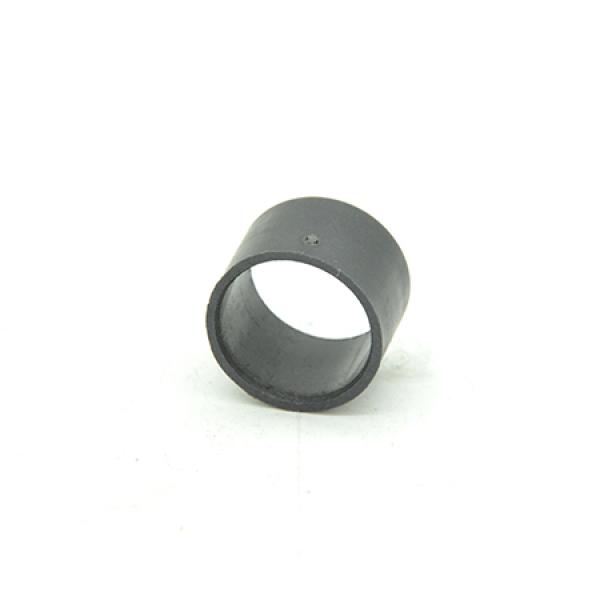

Polymer bushing 6mm, 8mm, 10mm or 12mm

$0.40

Specification

GSB-0608-10
GSB-0810-10
GSB-1012-10
GSB-1214-15

EPG Plastic Bushings
Applications ace high loads. As the perfect combination of fiber-reinforced and lubricating materials, it can be widely applied at 130 degrees.
1: continuous use temperature: -40 ℃ ~ + 130 ℃;
2: For high loads, common good;
3: Suitable for dry running, maintenance-free;
4: for different shaft materials;
5: for rotating, oscillating motion;
6: Anti-dust ability.

d mm² Tolerance after fit E10 Fit Housing H7 Fit Shaft h9
>0~3 +0.014~+0.054 0~+0.010 0~-0.025
>3~6 +0.020~+0.068 0~+0.012 0~-0.030
>6~10 +0.025~+0.083 0~+0.015 0~-0.036
>10~18 +0.032~+0.102 0~+0.018 0~-0.043
>18~30 +0.040~+0.124 0~+0.021 0~-0.052
>30~50 +0.050~+0.150 0~+0.025 0~-0.062
>50~80 +0.060~+0.180 0~+0.030 0~-0.074
>80~120 +0.072~+0.212 0~+0.035 0~-0.087
>120~180 +0.085~+0.245 0~+0.040 0~-0.100
