Two phase NEMA34 closed-loop stepper motor

$59.00 $55.00

Specification

CL86H280
CL86H298
CL86H2120
CL86H2156
SS86P280
SS86P2120
SS86P2156

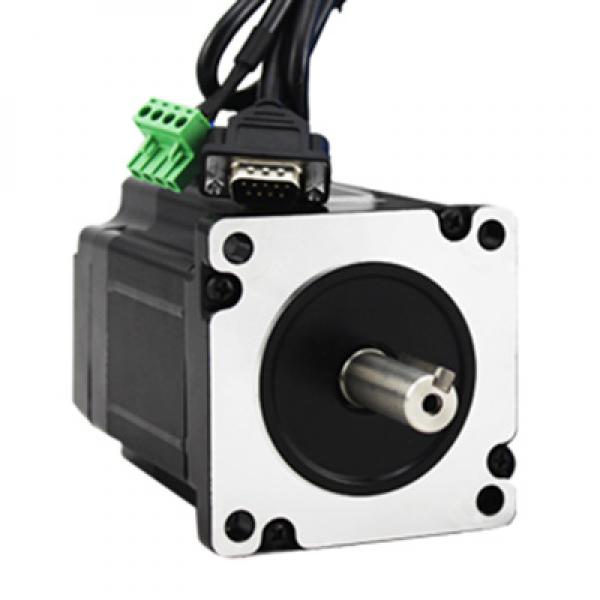

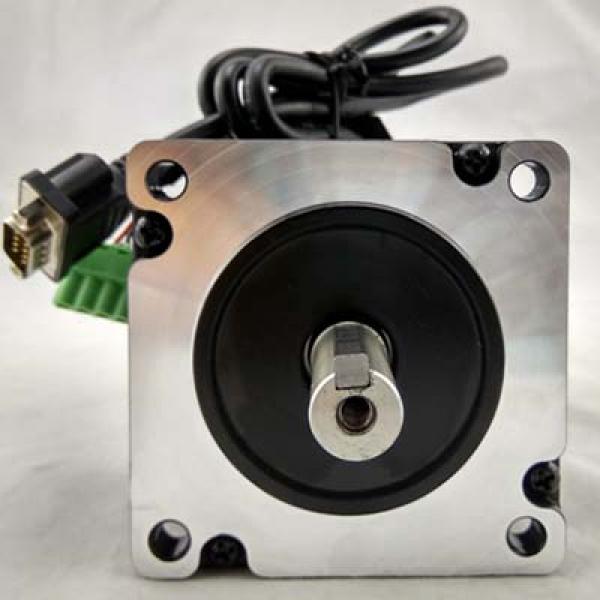

NEMA34 Closed-loop Stepper Motor

Two phase 86 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000PPR high precision encoder, completely overcome the open-loop stepper motor problems, while significantly enhance the motor high-speed performance ,To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%.
Motor length 120mm or 156mm plus 22mm encoder
Rated current: 6A or 7.5A
Holding torque: 8.2N.m or 12N.m
nema34 servo stepper

CLD808H is recommended as the stepper driver
Closed-loop nema34 stepper motor
NEMA34 closed-loop stepper motor
