MKS DET PWC outage detect or print finish PWC off

$6.00

Specification

MKSDET
MKSPWC-V2
Chat Online

MKS DET power outage detecting module, power monitor detector for MKS TFT touch screen
Notice: It will generate 220V voltage when input the module, please prepare good protection.

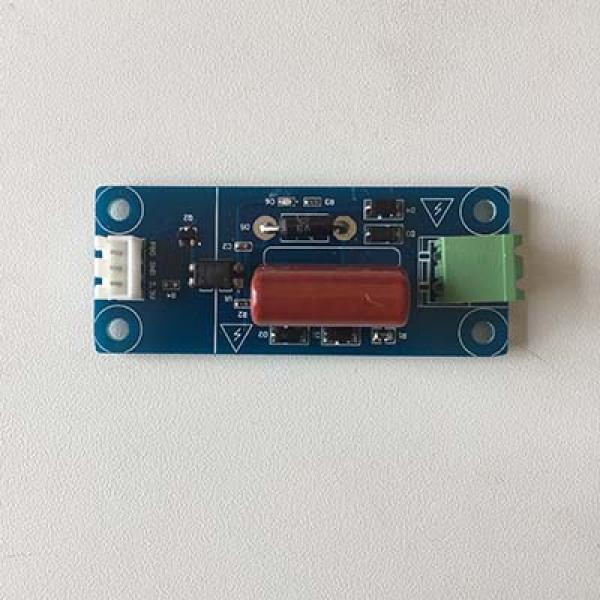

MKS DET
Product includes:
1pcs * outage detector module
1pcs * 3Pin Dupont Cable
Product Introduction:
1. Connect the power input terminal(blue) of outage detection module, as well as UPS to 220V(or 110V) power.
2. Connect the signal output terminal(3pins) of outage detection module to MKS TFT (PB0-->B0 Gnd-->- 3.3V-->+)
3. After MKS TFT receive outage message, it will automatically enter into printing suspending status. And the printer head will move from the model.
4. MKS TFT carries with function of outage continued printing.
It only saves printing state a sudden power down suffered. Please do Not move the printer, especially the hotend and nozzle. And recover the power supply within 1 minute.

New arrival: MKS PWC V2.0 with LED switch button printing finish power off module, support Marlin and Smoothieware firmware.
power off module
To achieve the function that it shutoff after printing finish, in addition to the essential MKS PWC module, please make sure mainboard and touch screen firmware version to 1.1.5.
power off module
MKS PWC

Note: the following module is high voltage and please take care to protect.
