Nextion NX8048T070 7 inches HMI touch display



Chat Online

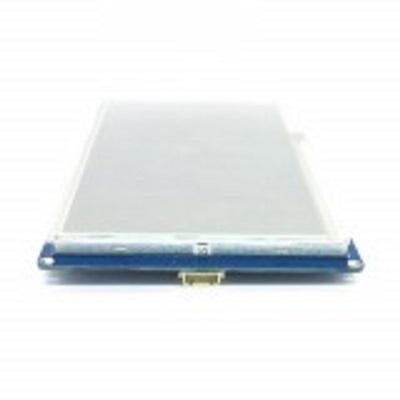

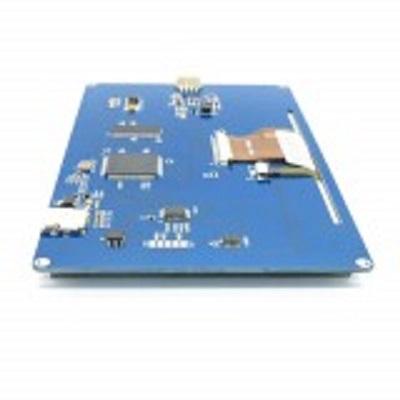

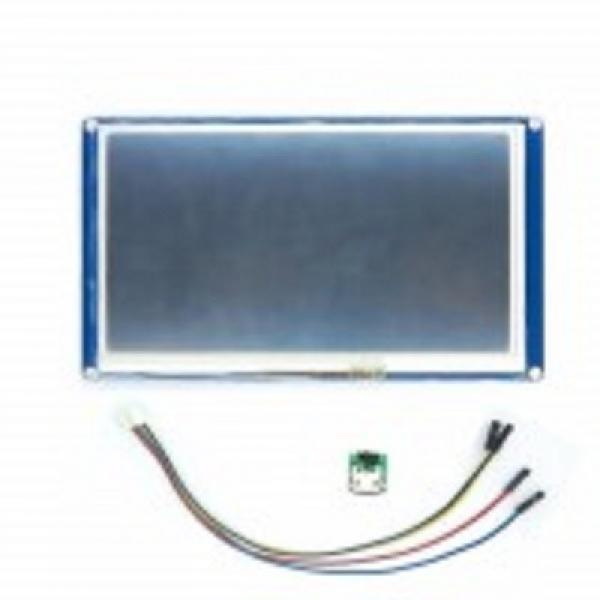

Nextion NX8048T070 - Generic 7.0 inches HMI TFT LCD Touch Display

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance.
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2, Arduino
800 x 480 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:154.08mm(L)×85.92mm(W)
Adjustable Brightness:0~230 nit, the interval of adjustment is 1 percent
5V510mA power consumption
