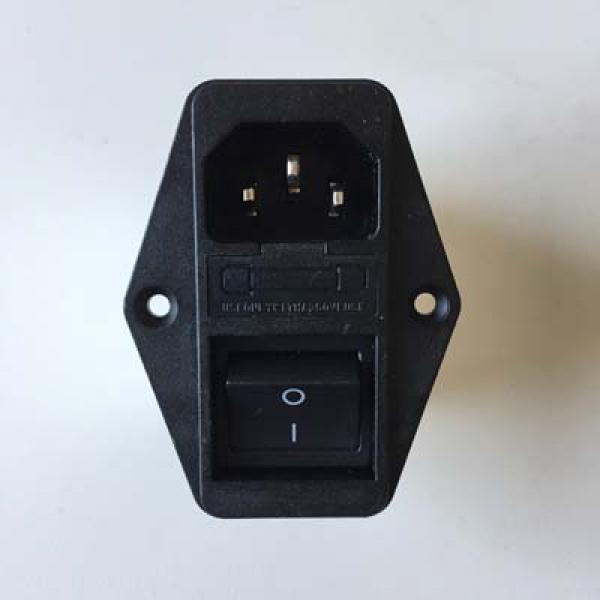

Power socket insured EMI power Filter 6A

$8.00

Specification

CW2B-6A-T
Chat Online

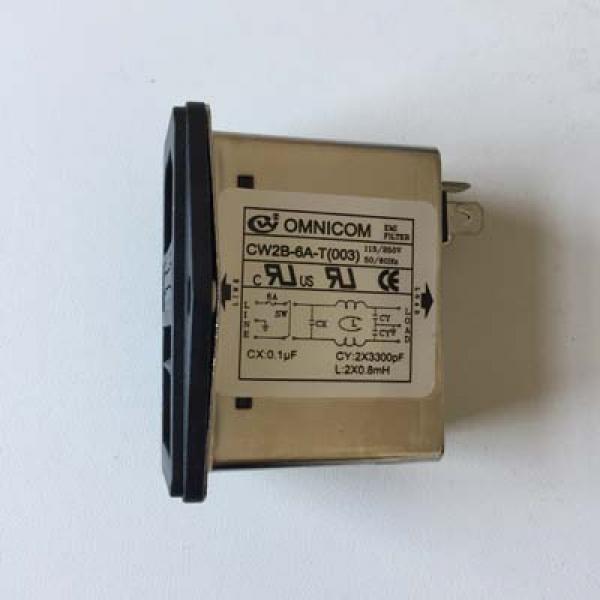

Noise Suppressor Power EMI Filter

Product Name : AC Power Line EMI Filter;
Model No. : CW2C-6A-T
Working Voltage : AC 110/250V AC;
Rated Current : 6A
Operating Frequency: 50/60Hz;
Leak Current: Each Line to Ground.
115V AC (60HZ) 0.45 mA max
250V AC (60HZ) 0.8 mA max
Hipot Testing: at one minute
Line to line 1450V DC
Line to ground 2250V DC
Insulation resistance: 100M Ohms min 250V DC
Direct current resistance: 0.5 Ohm Max
Approvals: UL, CUL, CE
Operating temperature: -25-85 Centi
Installing Hole Size(Approx) : 40mm
Distance: 4cm / 1.6"Diameter: 3mm/0.12";
Size(Approx) : 6.4 x 5 x 6cm / 2.5" x 2" x 2.4"(L* W*H) External Material : Metal;
Color : Silver Tone, Black Net Weight : 65g;
Package Content : 1 x AC Power Line EMI Filter
