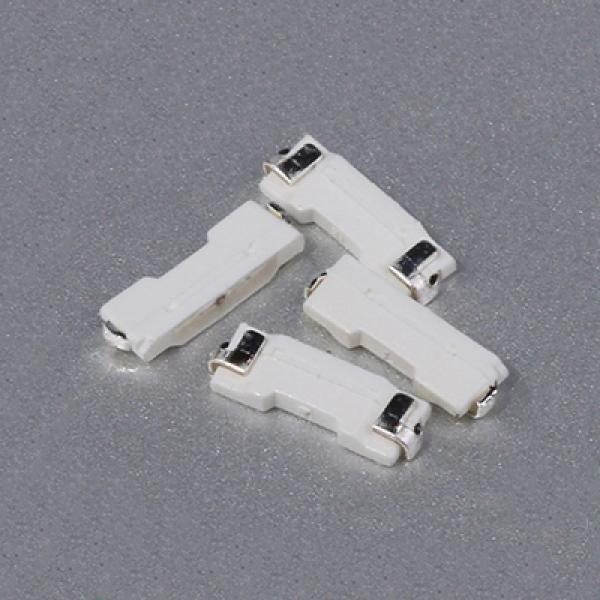

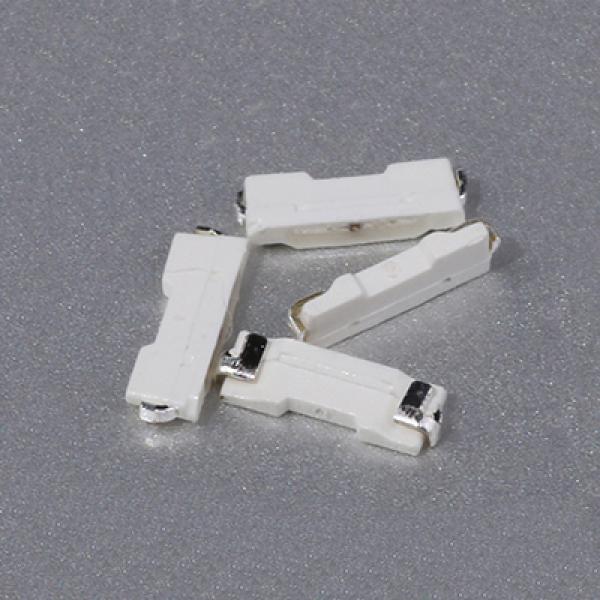

020 Package(0.6mm thickness) Side-Look LED

020 Package(0.6mm thickness) Side-Look LED

HQ99-2160UWC-pc(sample)

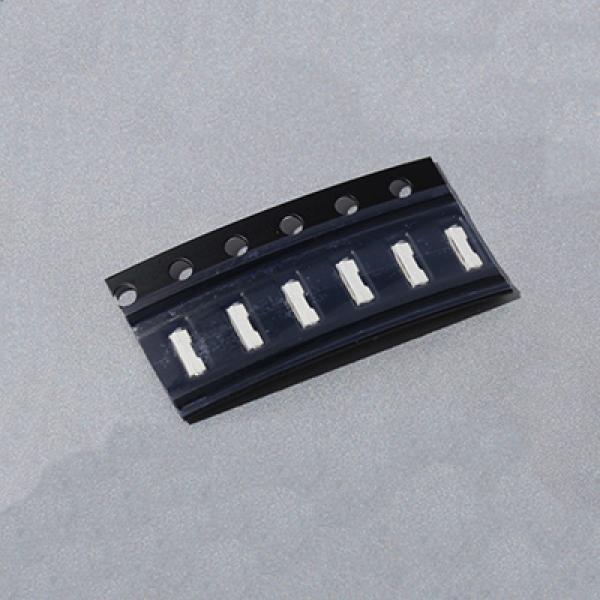

HQ99-2160UWC-3000pcs/reel

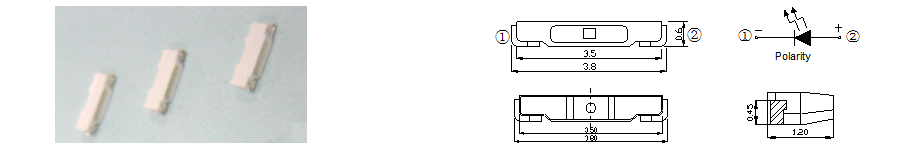

Size:: 3.8 × 0.6 × 1.2 mm
Color:: Ultra White
Weight:: 0.001Kgs

Size:: 3.8 × 0.6 × 1.2 mm
Color:: Ultra White
Weight:: 0.500Kgs

$0.04

Applied in pick and place machine, SMT surface mount technology industry.
Material:InGaN
Lens Type:Yellow diffuse
Dominant Wave length(Unit: nm, IF=20mA):x=0.29 y=0.28
Luminous Intensity(Unit：mcd,IF=20mA)60
Forward Voltage (Unit:V,IF=20A)Typical3.2Max3.6
Viewing Angle (Unit:degree)110
Welcome to download our LED chips catalog brochure to find more.
