Peristaltic pump filling machine

$300.00

Specification

GR1-6B
GR1-6B-Plus
Chat Online

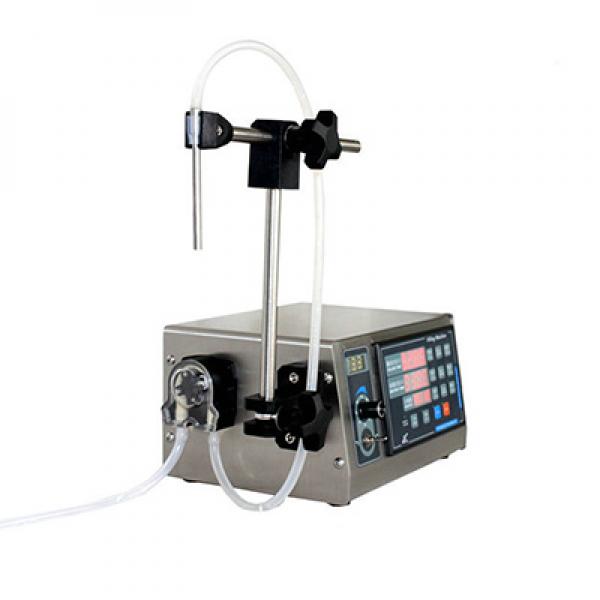

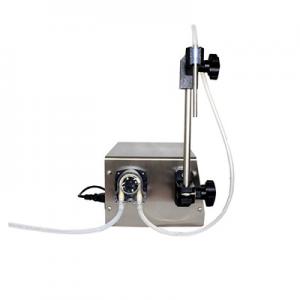

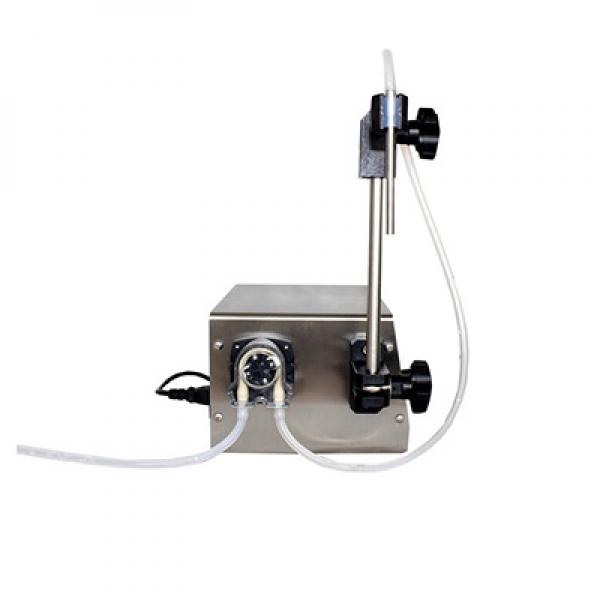

Peristaltic Pump Filling Machine

GR1-6B Flow range: 0-500ml/min
Filling range: 0.1-8000mL
Adopt DITRON-LED-DISPENSER-1 intelligent operation technology, imported chip STM32 control,With timing quantitative filling, high precision flow accuracy ±1%
Peristaltic pump filling, 42 stepper motor drive, 128 Times segmentation, low vibration, high precision; the liquid only through the tube, don't touch pump body, to avoid secondary pollution.
The tube is the import long-life Pharmed soft tube, anti-corrosion.
To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide and other viscosity or impurity liquid.
To fill nutrient medium, medical reagent
Imported potentiometer knob to adjust the flow
Support running time preset, interval time preset, filling time memory and preset
Manual, auto, preset 3 filling modes for choice
Foot switch control
304 stainless steel nozzle
Excellent industrial design, 304 stainless steel shell
Widely power range, AC 90-260V, 50Hz/60Hz
GR1-6B Filling Machine

GR1-6B new features:
Speed display function, LED display speed, speed range 1-300rpm, speed resolution 1rpm
Liquid reflux function, right and left button switch to adjust the direction of liquid flow, convenient for liquid recovery.
Detailed description:
Flow range: 0-500ml/min
Filling range: 0.1-8000mL
Adopt DITRON-LED-DISPENSER-1 intelligent operation technology, imported chip STM32 control,With timing quantitative filling, high precision, Flow accuracy ±1%
Peristaltic pump filling, 42 stepper motor drive, 128 Times segmentation, low vibration, high precision; the liquid only through the tube, don't touch pump body, to avoid secondary pollution. The tube is the import long-life Pharmed soft tube, anti-corrosion.
To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide, and other viscosity or impurity liquid.
To fill nutrient medium, medical reagent.
Imported potentiometer knob to adjust the flow.
Support running time preset, interval time preset, filling time memory and preset.
Manual, auto, preset 3 filling modes for choice.
Footswitch control
304 stainless steel nozzle
Excellent industrial design, 304 stainless steel shell
Widely power range, AC 90-260V, 50Hz/60Hz
GR1-6B-Puls Filling Machine
Filling Machine Volume
