Pick and place nozzle adapter

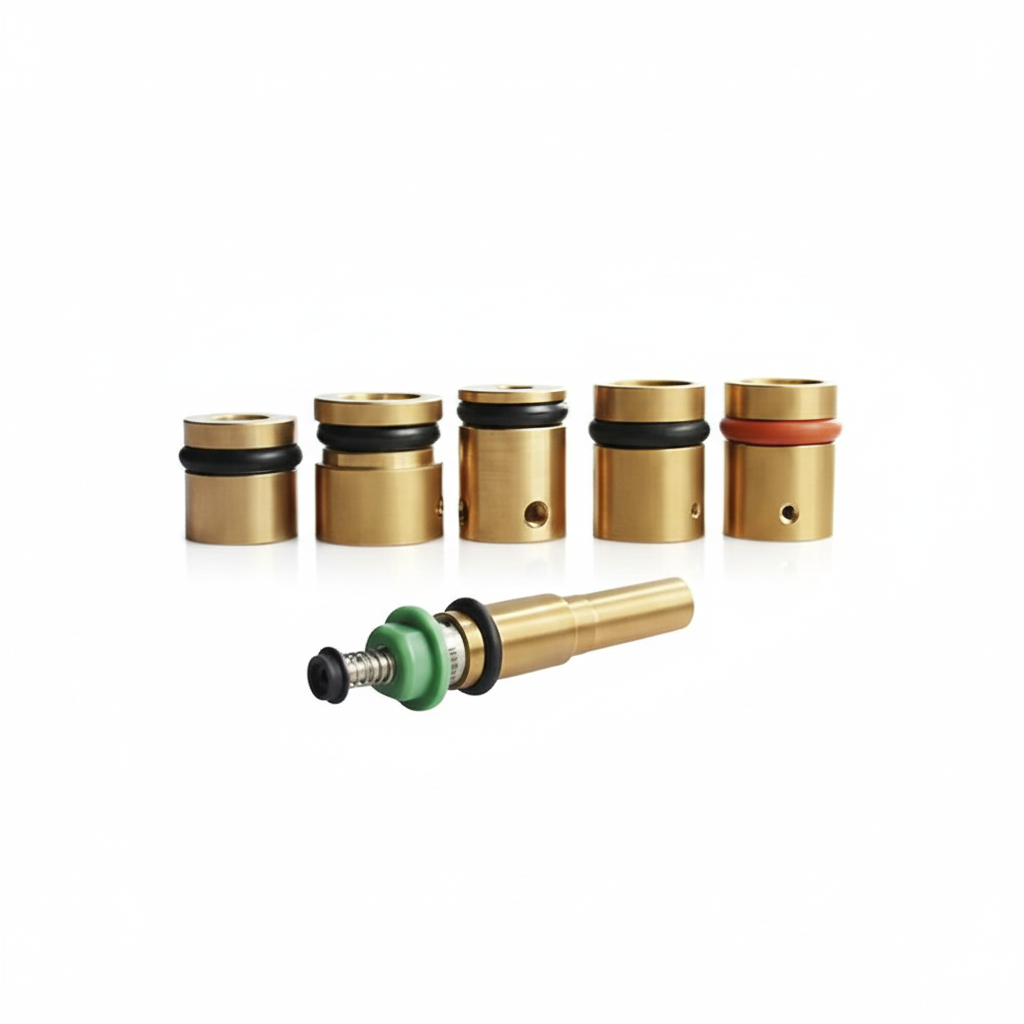

The nozzle adapter is a brass-based nozzle holder designed specifically for Juki-style nozzles. It is a more compact, "short-style" adapter typically used as a fixed or semi-manual interface in specific desktop PnP machines.
Key Features
Short Profile Design: This is the "short" version of the nozzle holder. Its compact height is critical for desktop machines where Z-axis travel is limited.
Vacuum Seal: Precision-machined internal bore ensures an airtight seal when the Juki nozzle is inserted, preventing vacuum loss during component pickup.
Mechanical Retention: It uses an internal tensioning system (usually an O-ring or small spring clip depending on the specific QC model) to hold the nozzle shank securely while allowing for manual or semi-automatic "quick-change" removal.
Concentricity: Because it is designed for SMT placement, the holder is machined to high tolerances to ensure that the nozzle tip remains centered during rotation, reducing "wobble" (run-out).
