Pneumatic Precision Thimble UV Glue Dispensing Valve

$49.00

Specification

QLH21A
QLH21B

Pneumatic Dispensing Valve

Specification:
Name:Thimble Dispensing Valve

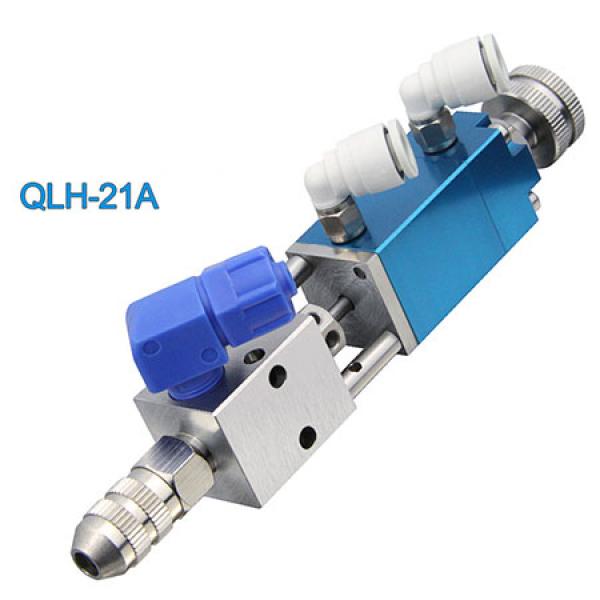

Model Number: QLH-21A
The minimum amount of spit: 0.01ml
Feed pressure: <60Kgs
Feed hole size: 1/8"npt(f)
Operating speed: <600/min
Operating viscosity: 1-1000000 cps
Air source: 4-7kgf/cm2
Out of glue mouth diameter: 4mm
Material: 304 stainless steel + aluminum alloy
Size:(D)21x(H)165mm
Weight: 200g
Packing List:
1 x QLH-21A Dispensing Valve
pneumatic dispensing valve

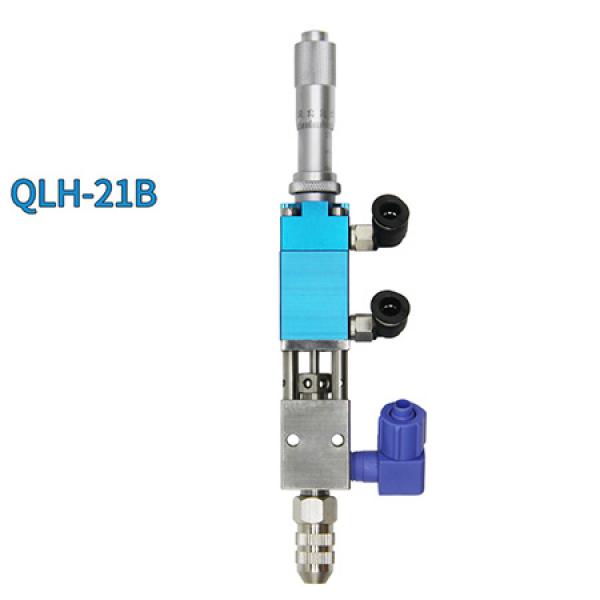

Model Number: QLH-21B
The minimum amount of spit: 0.001ml
Feed pressure: <30Kgs
Feed hole size: 1/8"npt(f)
Operating speed: <600/min
Operating viscosity: 1-1000000 cps
Air source: 4-7kgf/cm2
Out of glue mouth diameter: 2mm
Material: 304 stainless steel + aluminum alloy
Size:(D)21x(H)165mm
Weight: 500g
Packing list:
1 x QLH-21B Dispensing Valve
QLH-21B dispenser valve
