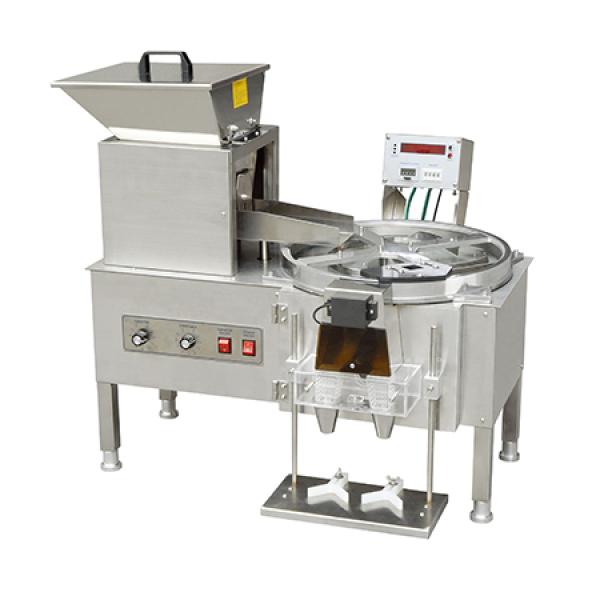

Chat OnlineAutomatic Stainless Steel Benchtop Counting Machines YL-2A
Instruction Manual Download:
● YL-2A Instruction Manual Download
● YL-2 and YL-4 Instruction Manual Download
● YL-8 Instruction Manual Download
● PY-2B Instruction Manual Download
New Arrivial Automatic Stainless Steel Benchtop Counting Machines PY-2B
Model No.: PY-2B
Speed: 800 - 2000 capsules/min
Application Scope: Hard capsules, soft capsules, tablets, pills, etc.
Control Method: Touch screen control
Counting Method: Fiber optic infrared detection
Applicable Size: Capsule Model 00#-5#
Tablet Diameter: 5-25MM
Bottle Size: Diameter 25-75mm, Height≤180mm
Counting Errors: ±0.3%
Supply Voltage: 220V/50Hz or 110V/60Hz; 100W
Net Weight: 50KG
External Dimensions: 735*580*720mm
Machine Material: Stainless steel of main parts material 304(0Cr18Ni9)
Package dimension: 760*400*740mm
Gross weight: 65KG
Automatic Stainless Steel Benchtop Counting Machines YL-2A
Model: YL-2A (CDR-5A)
Voltage: 110-220V 50HZ/60HZ
Power: 30W
Capacity: 500-1500pcs/min
Machine Weight: 20kg
Gross weight: 30kg
Machine Size: 427*327*525mm
Package Size: 52x44x64cm
YL-2A has been designed and developed to count & fill different shapes or sizes of products accurately like hard capsules, tablets, pills, or similar products into vials, bottles, or containers.
YL-2A can count tablets and capsules. CAN NOT count soft gels.
Counting range from 1 to 9999 pcs. (The machine can be adjusted to count capsules or tablets between 1-9999 pcs per bottle without changing spare parts).
Main parts are made of SUS316
The smooth rotary system with a computerized counter makes high accuracy.
Infrared recognize system can recognize the transparent hard capsule. Even though after the long time running, it still can penetrate the dust built by the naked tablet.
YL-2A has a collector of chips and powder is provided. Well design structure, easy to maintain, and clean.
All parts are easy to exchange, including PC boards of the control system.
Stainless Steel Desktop Counting Machines YL-2 and YL-4
Model: YL-2
Voltage: 110-220V 50HZ/60HZ
Power: 100W
Capacity: 1000-2000pcs/min
Machine Weight: 65kg
Gross weight: 92kg
Machine Size: 81x72x84cm
Package Size: 92x78x93cm
YL-2 can count Tablets, Capsules, and soft gels.
Model: YL-4
Voltage: 110-220V 50HZ/60HZ
Power: 100W
Capacity: 2000-4000pcs/min
Machine Weight: 78kg
Gross weight: 110kg
Machine Size: 82x74x88cm
Package Size: 99x80x98cm
YL-4 can count Tablets, Capsules, and soft gels.
Small Production Electronic Counting Machines YL-2D
Model: YL-2D
Voltage: 110-220V 50HZ/60HZ
Power: 500W
Capacity: 1000-2000pcs/min
Machine Weight: 180kg
Gross weight: 250kg
Machine Size: 138x67x155cm
Package Size: 148x78x159cm
YL-2D can count Tablets, Capsules, and soft gels.
YL-2D is designed for the small production line.
Mass Production Electronic Counting Machines YL-8
Model: YL-8
Voltage: 110-220V 50HZ/60HZ
Power: 600W
Capacity: 10-30 bottles/min
Machine Weight: 280kg
Gross weight: 350kg
Machine Size: 138x67x155cm
Package Size: 148x131x159cm
YL-8 can count Tablets, Capsules, and soft gels.
YL-8 is designed for the Mass production line.
