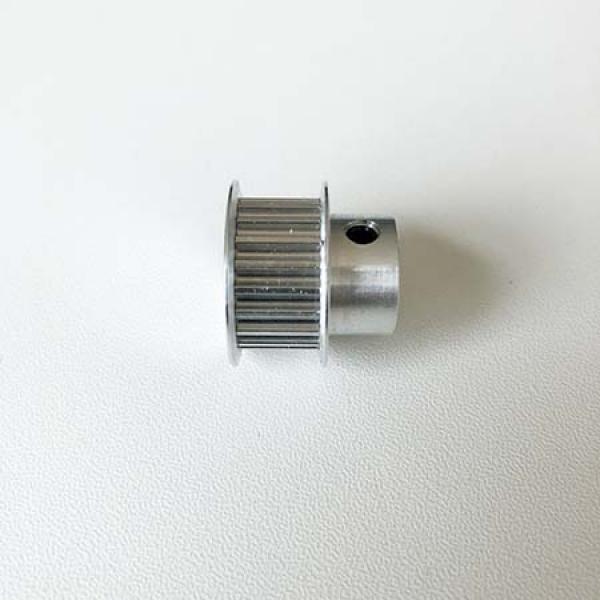

3GT pulley 20 tooth 6.35mm bore for 9mm wide belt

$3.60

Specification

GT3-18T-6.35B-9

3GT Pulley

Toot number 20
Tooth profile GT 3mm pitch
For Belt Width (mm) 9.000
GT3 Pulley 20 Tooth
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.722
Flange Diameter (in) 0.895
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.400
Unit System Inch
Weight (lb) 0.02
GT3 Pulley
