Chat Online900M Soldering Iron Tips
If you need other model number which is not listed, please leave us message when ordering.
Life: 5-15K solder joints longer than ordinary soldering iron
Use: All 936 electric soldering iron
Note: The larger the tip, the greater the heat capacity, the smaller the tip, the smaller the heat capacity
When the continuous welding, the use of the larger tip, the smaller the temperature drop. In addition, because the large soldering iron head heat capacity, welding time to use a relatively low temperature, the tip is not easy to oxidation, increase its life. In general, the size of the tip does not affect the adjacent components as the standard, select the weld in full contact with the geometric dimensions can improve the welding quality

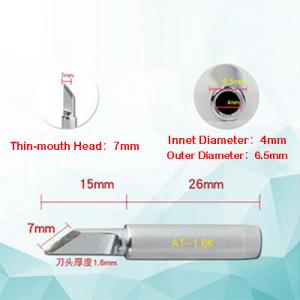

K type (knife-shaped,AT-K,AT-1.6K,AT-3.5K)
Features: the use of blade-shaped part of the welding, vertical or pull welding can be welded, are multi-purpose tip.
Application: Suitable for SOJ, PLCC, SOP, QFP, power supply, grounding part of the original components, modified tin bridge, linker and other welding
B-shaped: (conical)
Features: B-type iron head without direction, the tip of the entire tip can be welded by line
Application: suitable for general welding, regardless of the size of the solder joints, but also to B-type tip

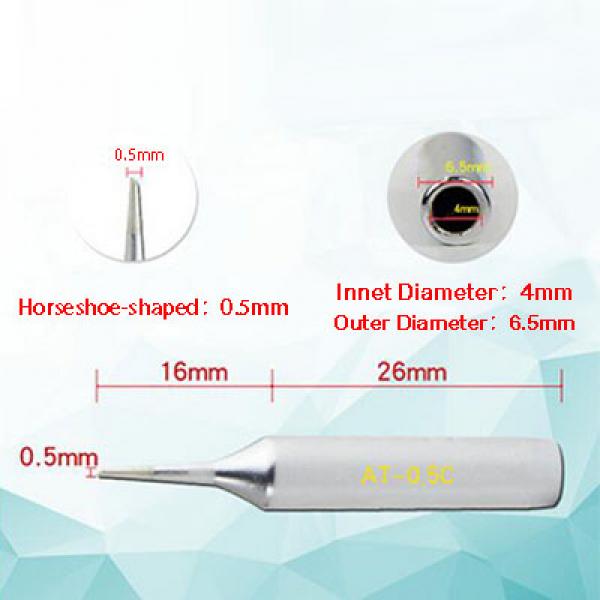

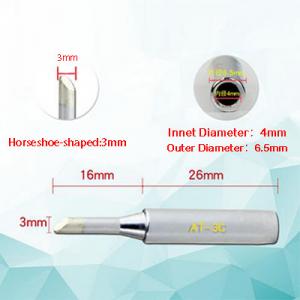

(AT-1C AT-2C AT-3C AT-4C AT-5C)
Features: with the tip of the tip of the ramp part of the line by welding, suitable for the amount of solder required. So the amount of tin will be different with the C-type soldering head depending on the needs of welding and choose.
Application: suitable for the need for more than the amount of welding, such as welding area, thick terminals, welding pad welding environment
Flat head(AT-0.8D,AT-1.2D,AT-1.6D,AT-2.4D,AT-3.2D)
Features: part of the approved by the line of welding
Application: suitable for the need for more than the amount of welding, such as welding area, thick terminals, welding pad welding environment

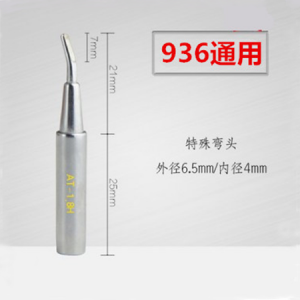

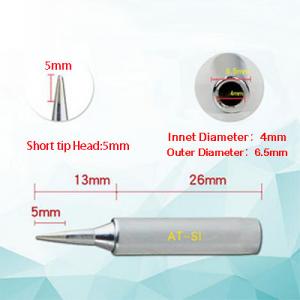

Bending tip(AT-IS,AT-I,AT-SI)
Features: Trolley bent, tip fine
Application: suitable for fine welding, or welding space is small, you can also amend the tin solder tin
Special specifications

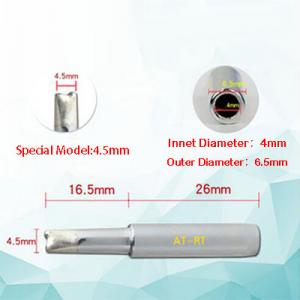

Cutting-edge(AT-R,AT-RT,AT-LB,AT-H,AT-1.8H)
Features: cutting-edge, thermal fast, smooth up and down the tin, solder after the solder joints smooth, uniform
Application: suitable for fine welding, or welding space is small, you can also amend the tin solder tin
