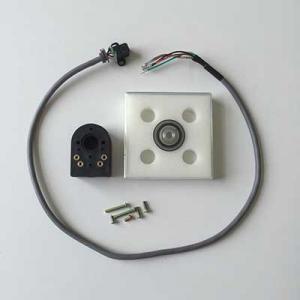

1000 line rotary incremental encoder kit

$20.00

Specification

1000PD30-4mm
1000PD30-5mm
1000PD30-6mm
1000PD30-6.35mm
1000PD30-8mm
Chat Online

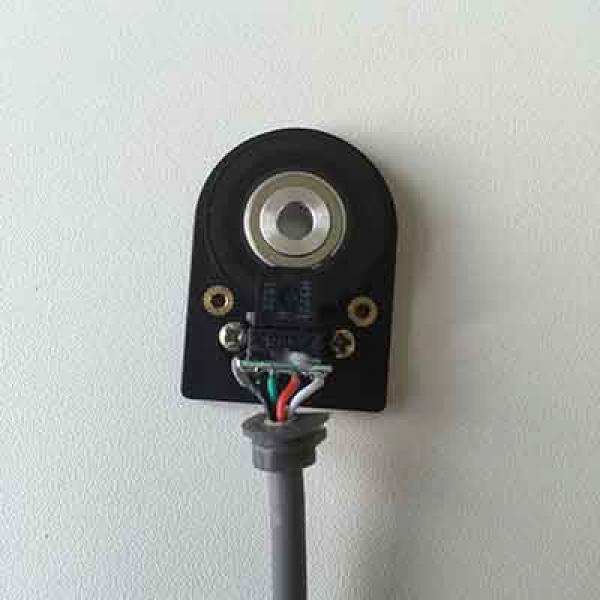

Rotary Incremental Encoder 1000 Line

Application: Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.

17HS5005-20BM Nema17 48mm stepper motor for mounting of this Rotary Encoder is available in stock.

Electrical spec:

voltage

Output signal

Current

consumption

Output

waveform

Rise

time Tr

Fall

time Tf

Response

frequency

Insulation

Resistance

5V

High level

Low level

<65mA

no-load

Square

200ns

50ns

0-10kHz

>100Ω

≥85%Vcc

≤0.3

Mechanical spec:

Max speed r/min

Starting torque

Axis maximum load

Impact

Anti-vibration

2400

<0.05Nm

Radial 25 N Axial 15N

50G/11ms

10G 10-2000Hz

Moment inertia

Work Temperature

Storage Temperature

Protection Degree

Weight

4 x 10.-8kgm²

-40~85ºC

-40~85ºC

IP50

50g



incremental encoder
Output phase shift
encoder output

Connections:

Shielded cable wiring definition

Signal

A

A/

B

B/

Z

Z/

Vcc

0V

L circuits

Green

Brown

White

Grey

Yellow

Orange

Red

Black

T/C circuits

Green


White


Yellow


Red

Black

Output channels

Flat cable connection definition

A 、B

0V A Vcc B

A、B、Z

0V Z A Vcc B

A、B、Z、A/、B/、Z/

0V Vcc A A/ B/ B Z Z/

Note: The red defined as 0V.
Incremental Encoder wiring
Incremental Encoder Wiring
