Bidirectional lead screw or ball screw

$25.00

Specification

LS0802-300Bi
LS0802-400Bi
LS0804-400Bi
LS0808-400Bi
LS1004-400Bi
LS1010-400Bi
BS1605R-400Bi
BS1605R-500Bi
BS1610R-500Bi
Chat Online

Bidirectional leadscrew or ballscrew

Introduction:
Precision bi-directional Lead Screw or Ball Screw can achieve the function of close and open, positioning and centering location on a single axis, and offer the precision grade of C3 or C5.
bidirectional screw

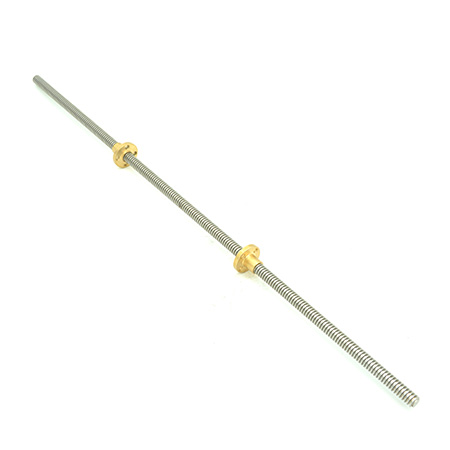

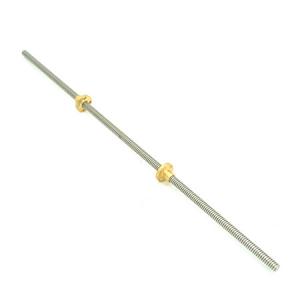

The bidirectional lead screw 0802 diameter 8mm and 2mm pitch/lead
The screw nuts are included, for Tr8*2 it is Square, and for Tr8*4 it is Round shape
bidirectional lead screw

Left and right hand ball screw

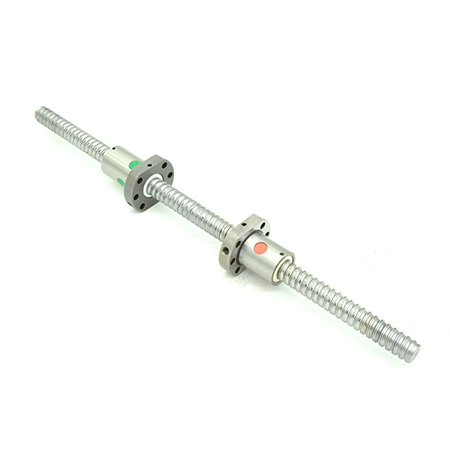

Bidirectional ball screw 1605 diameter 16mm and 5mm pitch/lead
bidirectional ball screw
Smaller diameter 0802, 1002, 1004, 1202, 1204 Customized bidirectional or left and right hand Ground Ball Screws are available on request.
left and right hand ball screw
rolled or ground ball screws

Left and right hand lead screw

How to describe such a lead screw or ball screw, it's been difficult, there is No problem to call it a left-hand and right-hand screw, But it can Not be identified as one screw. Bidirectional a great word is found for the lead screw and ball screw. RobotDigg has used this kind of bidirectional ball screw for a clamping linear actuator. Other applications are waiting for your development.

What's the difference between a bidirectional screw with a self-reversing or reciprocating screw?
The bidirectional screw from two directions to clamp or open, while the reciprocating screw is just working in one direction and will self reverse at the end of both ends.
