14-inch Deluxe Bandsaw, 220V Hisimen 9" and 10" Band Saw

$399.00

Specification

H0356
H0256
H0156

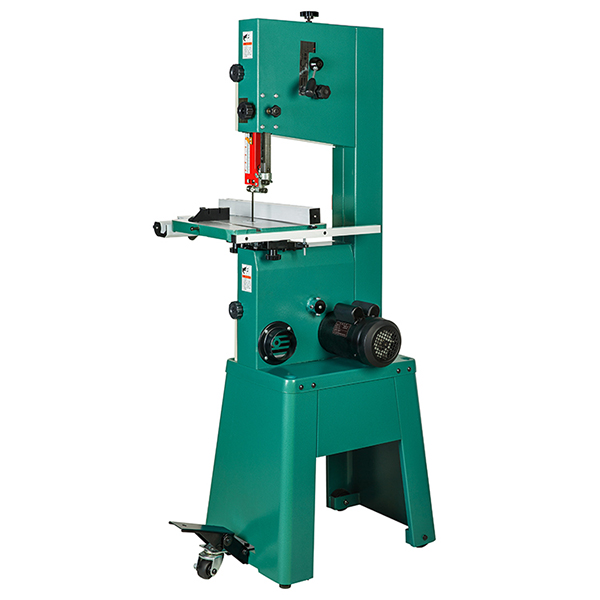

14-inch Deluxe Band Saw H0356 Specification:
Motor Type: Induction Motor 220V / 50Hz
Motor power: 1350W
Workbench material: cast-iron workbench
Workbench size: 356x356MM

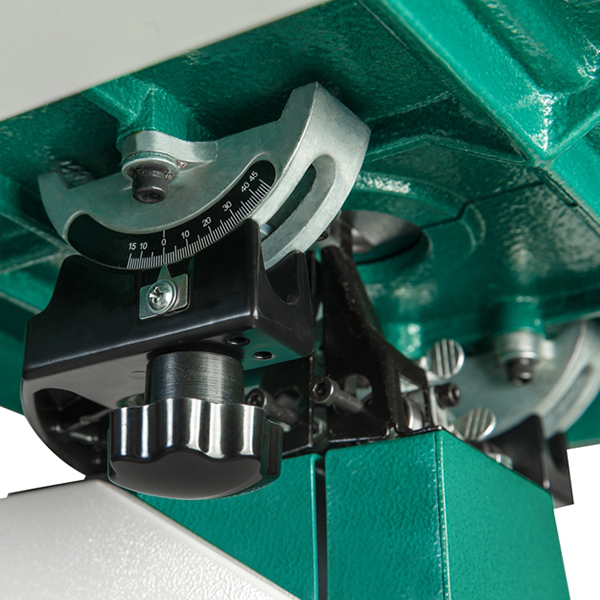

Table tilt: 10° left / 45°right
Saw wheel diameter: 356MM
Cutting height: 203MM
Cutting width: 343MM
Saw blade standard specifications: 2548x9.5x0.5MM
Minimum width of saw blade: 3.175MM
The maximum width of saw blade: 20MM
Saw line speed: 915m/min
Machine size: 455x610x1753MM
Net weight/gross weight: 82/99KG
Packing size for Machine: 1230x580x480MM
Packing size for Under Base: 725x500x180MM

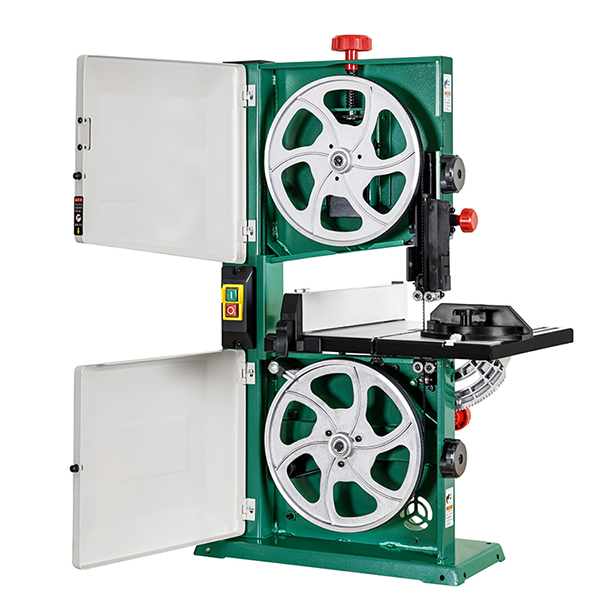

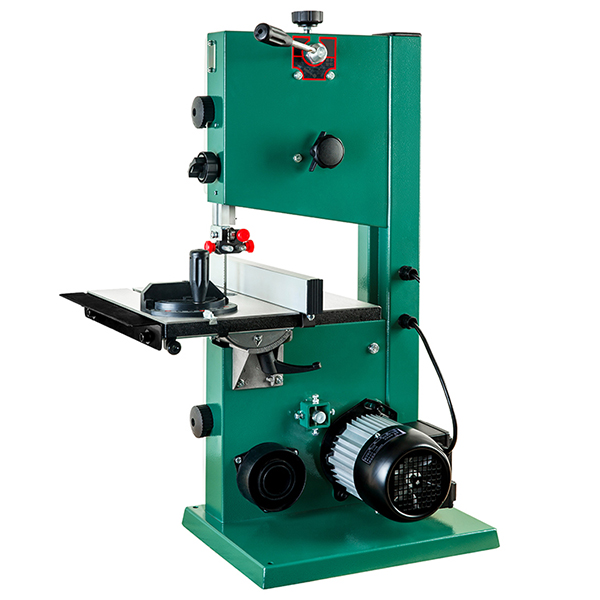

10" Deluxe Band Saw H0256 Specification:
Motor Type: Induction Motor 220V / 50Hz
Motor power: 550W
Motor speed: 1450RPM
Workbench material: cast-iron workbench with plus
Workbench size: 335x345MM with Plus is 334x490MM
Table tilt: 0-45°
Saw wheel diameter: 255MM
Cutting height: 100MM
Cutting width: 245MM
Saw blade standard specifications: 1712X9.5X0.35MM
Minimum width of saw blade: 3.2MM
The maximum width of saw blade: 13MM
Saw line speed: 780m/min
Machine size: 590x500x800MM
Net weight/gross weight: 34/38KG
Packing size: 885x390x475MM

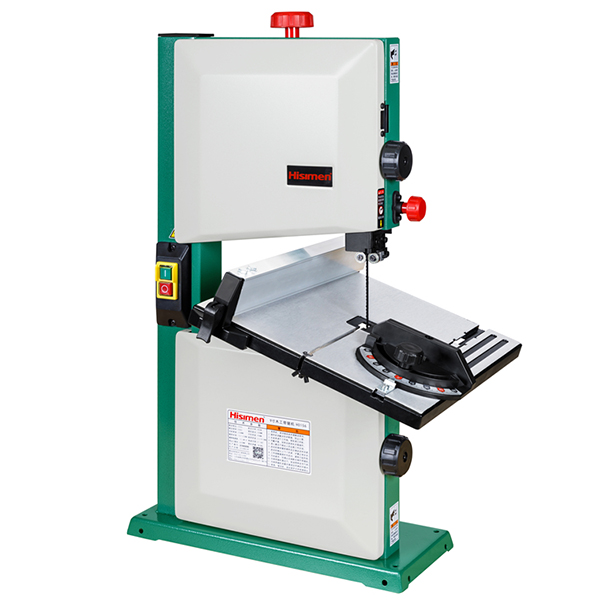

9" Deluxe Band Saw H0156 Specification:
Motor Type: Induction Motor 220V / 50Hz
Motor power: 450W
Motor speed: 1450RPM
Workbench material: cast aluminum workbench
Workbench size: 313x302MM
Table tilt: 0-45°
Saw wheel diameter: 235MM
Cutting height: 90MM
Cutting width: 228MM
Saw blade standard specifications: 1511X6.35X0.35MM
Minimum width of saw blade: 3.2MM
The maximum width of saw blade: 9.5MM
Saw line speed: 635m/min
Machine size: 480x350x720MM
Net weight/gross weight: 18.3/22KG
Packing size: 800x450x295MM
