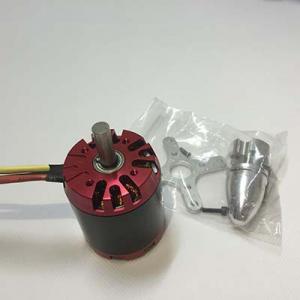

C5055 or C5065 Brushless Motor for Electric Skateboard

$24.00

Specification

C5055 Brushless Motor
Rotational Speed : 270 (kv) RPM/V
Continuous Current : 80A
Max. Current : 90A
Input Voltage : 11.1 - 29.6V
Max. Efficiency : 98%
No Load Current : 1.5A
Internal Resistance : 42m(Omega)
Motor Dimensions (Diameter x Length) : 49 x 61mm

C5065 Brushless Motor
Motor
C5065/6

Size
KV(rpm/v)
400
MotorSize_01
Power(W)
1665
Wire Winds
6
Resistance(mO)
20
Idle Current(A)
2
Shaft diameter A(mm)
8
ESC(A)
80
Motor length B(mm)
65
Cells Ni-Cd/Ni-MH
9-24
Motor diameter C(mm)
50
Cells Li-Po
3-8
Basic length D(mm)
43
Prop14x10/15x10/16x10Total length E(mm)
86

8mm shaft which are also popular for electric skateboard

C5065 Brushless Motor
