MegLev or Ball Bearing 5015 Brushless DC Fan

$1.90

Specification

5015-12V SUNON
5015-12V ADDA
Chat Online

Quality 5015 Brushless DC Fan

Dimension: 50*50*15mm
12VDC or 24VDC 0.14A
Bearing type: MegLev Bearing or Ball Bearing
MagLev Motor Fan, SUNON released the first magnetic levitation motor in 1999. Based on the excellent performance of this product, following up the MegLev Motor fan products featured higher flexibility, energy-efficiency, lower noise, and longer service life have been created.

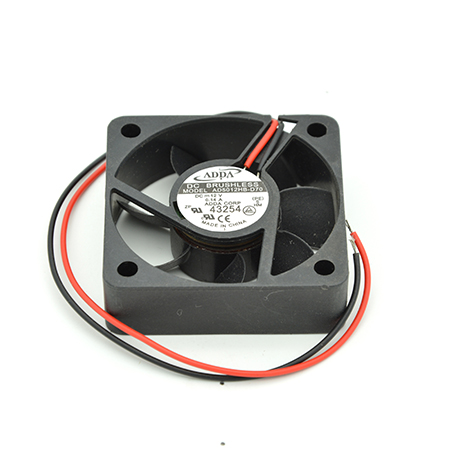

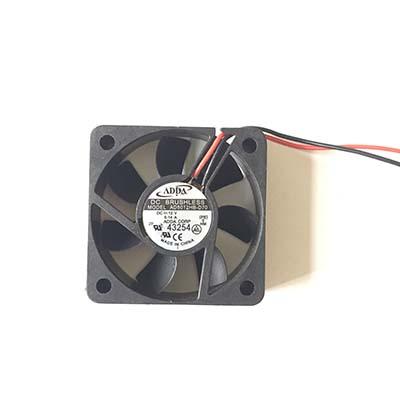

Manufacturer: ADDA
Product: DC Axial Fans
Type: Axial
5015 ball bearing dc fan
Frame Dimensions - mm: 50 mm L x 15 mm W x 50 mm H
Operating Supply Voltage: 12 VDC
Airflow: 14.4 CFM
Speed: 4800 RPM
Pressure Type: 3.5 mmAq
Bearing Type: Ball
Noise: 30.7 dBA
Power Rating: 1.68 W
Series: AD 50x15
Height: 50 mm
Length: 50 mm
Size: 50 mm
Width: 15 mm
Current Type: DC
Compliance: CE
Product Type: Fans

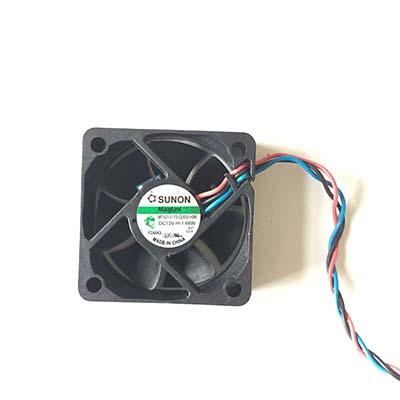

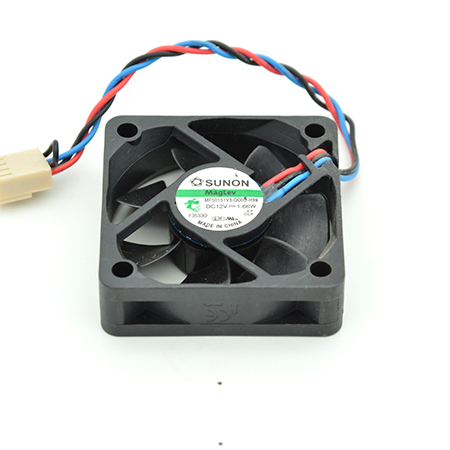

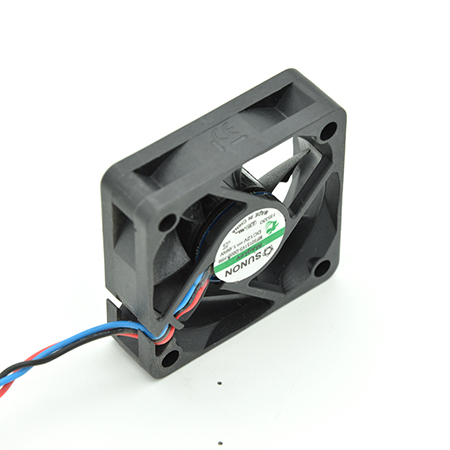

Manufacturer: SUNON
Part Type Cooling Fan
Model MF50151V3-Q00U-H99
Bearing Type: MegLev
Length 50
Width 50
Height 15
Voltage 12V
Power 1.66W
Wires 3
SUNON DC Fan
